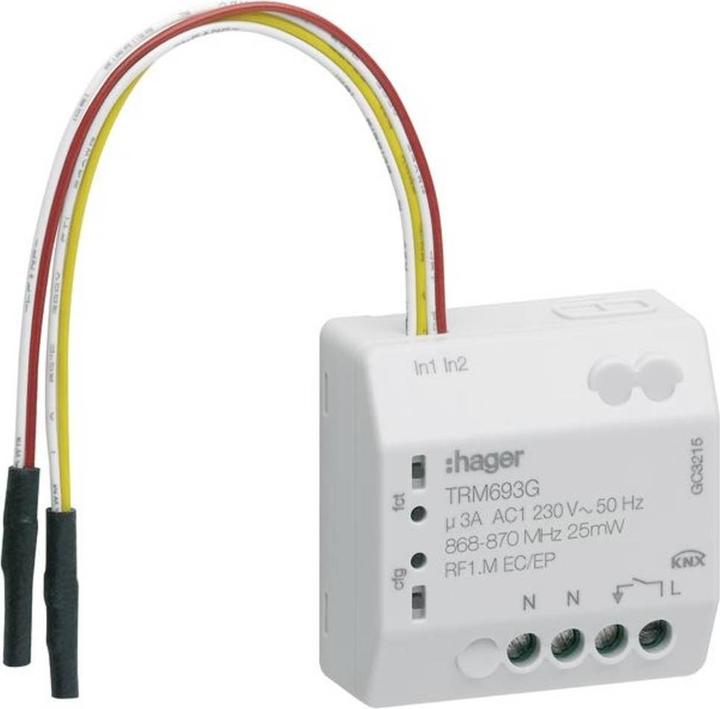

Hager Wireless Built-in Switching Actuator TRM693G

Manufacturer: Hager
Designation: Wireless Built-in Switching Actuator
Type: TRM693G
Bus System KNX: Yes
Bus System KNX Wireless: No
Bus System Wireless Bus: No
Bus System LON: No
Bus System Powernet: No
Other Bus Systems: None
Bidirectional Wireless: Yes
Mounting Type: Built-in
On-site/Manual Operation: Yes
With LED Display: Yes
Max. Number of Digital Inputs: 2
Max. Switching Power: 500 W
Output Power: 690 W
Suitable for C-load: Yes
Max. Number of Switching Outputs: 1
Max. Rated Operating Voltage: 230 V
Different Phases Can Be Connected: No
With Bus Coupling: Yes
Bus Module Can Be Removed: No
Min. Depth of Device Box: 40 mm
Modular Expansion Option: No
Protection Class (IP): IP20

Additional Details:
Wireless built-in switching actuator with 1 binary input, 2-fold, 230V, 3A, 3-wire. This KNX wireless built-in switching actuator features screw terminals for installation behind flush-mounted inserts. It includes Quicklink (button mode) for tool-free configuration and function buttons with LEDs.

The actuator has an independent, mains-powered binary input for a floating contact without a neutral connection and a 4-wire cable for control via switches, buttons, or timers. It allows the retrieval of scenes via KNX wireless devices, the storage of scenes (which can be locked), and a reset function (to factory settings).

The Quicklink functions include switching, 2 scenes, timer, button contact, and override. Additional simple functions allow for +6 scenes. ETS additional functions include +6 scenes, on/off operating mode, 1 up/down button control, button, 2 x alarm, and status display.

Note: Optional integration via KNX wireless media coupler into the KNX-TP system.
EAN: 3250615988805.
