Hager Phase bar 1 pole KDN163B Fork connection 10qmm 63A 57 modules

Ratings
Delivered between Fri, 15.8. and Wed, 27.8.
More than 10 pieces in stock at supplier
Free shipping starting at 50.–

Product details

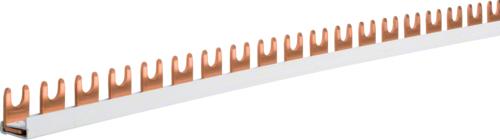

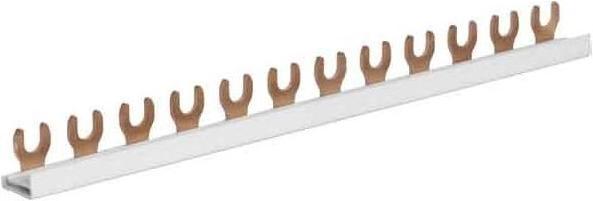

Hager Phase Rail KDN163B

Manufacturer: Hager
Description: Phase rail 1P, 10 mm², 57 modules
Type: KDN163B
Number of Phases: 1
Number of Poles: 1
Suitable for Number of Devices: 57
Division Measure: 17.8 mm
Cross Section: 10 mm²
Length: 1000 mm
Cuttable: yes
Width in Division Units: 57
Rated Continuous Current Iu: 63 A
Type of Electrical Connection: Fork
Insulated: yes
Rated Impulse Voltage: 4.5 kV
Max. Rated Operating Voltage Ue: 415 V
Suitable for Devices with Neutral Conductor: no
Suitable for Devices with Auxiliary Switch: no
Color: gray

Hager Phase Rail KDN163B: additional details
Single-pole phase rail with fork connection 10 mm² 63 A 57 modules. Phase rail for compatible modular devices.
EAN: 3250613740948.

Key specifications

Length
1000 mm
Width
100 mm
Height
100 mm
Item number
22653995

General information

Manufacturer
Hager
Category
Wiring closet technology
Manufacturer no.
KDN163B
Release date
13.10.2022

Colour

Colour
Grey
Exact colour description
Grey

Distribution cabinet technology Features

Nominal current
63 A
Nominal voltage
415 V
number of poles
1
Leakage current
0.06 kA
Divisions
57 x
input voltage
415 V

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
1000 mm
Width
100 mm
Height
100 mm
Depth
1000 mm
