Hager NH fuse switch disconnector LT050 160A

Ratings
Delivered between Fri, 27.6. and Wed, 9.7.
More than 10 items in stock at supplier

Product details

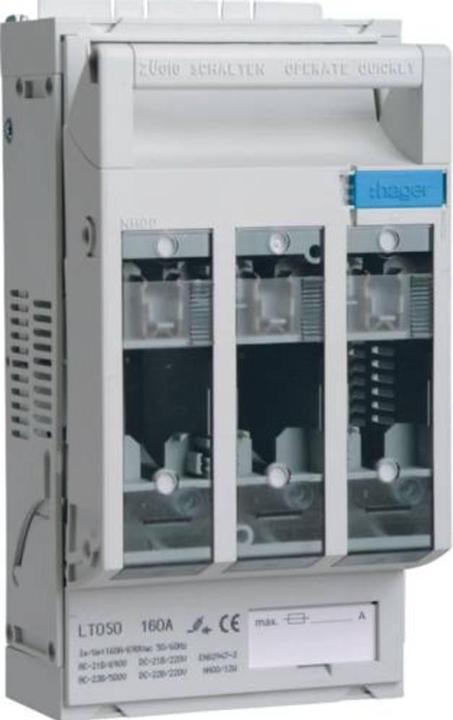

Hager Fuse Disconnect Switch LT050

Manufacturer: Hager
Designation: Fuse Disconnect Switch NH00, 3x160A, 70qmm
Type: LT050
Number of Poles: 3
Rated Operating Current Ie: 160 A
Max. Rated Operating Voltage Ue for AC: 690 V
Rated Insulation Voltage Ui: 1000 V
Size of Fuse Inserts: NH00
With Fuse Monitoring: no
Width of Housing: 106 mm
Depth of Housing: 80 mm
Height of Housing: 200 mm
Protection Class (IP): IP3X
Protection Class (NEMA): 1

Hager Fuse Disconnect Switch LT050: Additional Details
Fuse disconnect switch LT NH00 160A, frame terminal 95mm², DIN rail. NH00 fuse disconnect switch for mounting plate or DIN rail mounting according to DIN EN 60947-3 (VDE 0660-107) and suitable for NH fuse inserts according to DIN 43620/1. Comprising a 3-pole switch base and a sealable handle insert, touch protection on the handle, with a movable clear window for voltage testing, all-pole switching, for mounting on a DIN rail or mounting plate without additional cover.
EAN: 3250614200502.

Key specifications

Protection type (IP code)
IPX3
Length
80 mm
Width
106 mm
Height
206 mm
Item number
17823370

General information

Manufacturer
Hager
Category
Wiring closet technology
Manufacturer no.
LT050
Release date
3.5.2021

Distribution cabinet technology Features

Nominal current
160 A
Protection type (IP code)
IPX3
number of poles
3
Fuse size
NH00

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
80 mm
Width
106 mm
Height
206 mm
Depth
80 mm

Package dimensions

Length
24 cm
Width
11 cm
Height
13 cm
Weight
460 g
