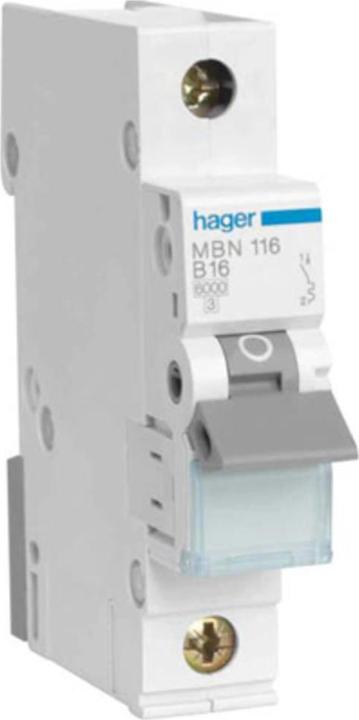

Hager MBN116 Circuit breaker

Minimum order 10
Ratings
BrandMore from Hager
Delivered between Thu, 5.6. and Mon, 9.6.
More than 10 items in stock at third-party supplier
Supplied by

Product details

Hager Circuit Breaker MBN116

Manufacturer: Hager
Designation: Single-pole Circuit Breaker B-16A, 6kA
Type: MBN116
Installation Depth: 70 mm
Tripping Characteristic: B
Total Number of Poles: 1
Number of Protected Poles: 1
Rated Current: 16 A
Rated Voltage: 400 V
Rated Insulation Voltage Ui: 500 V
Rated Impulse Voltage Uimp: 4 kV
Rated Switching Capacity Icn according to EN 60898 at 230 V: 6 kA
Type of Voltage: AC
Rated Switching Capacity Icu according to IEC 60947-2 at 230 V: 6 kA
Frequency: 50-60 Hz
Power Loss: 2.44 W
Energy Limitation Class: 3
Flush Mounting: Yes
Switched Neutral Conductor: No
Overvoltage Category: 3
Degree of Pollution: 2
Additional Devices Possible: No
Width in Division Units: 1
Protection Class (IP): IP20
Ambient Temperature during Operation: -25 to 70 °C
Connectable Conductor Cross-section Multi-stranded: 1-25 mm²
Connectable Conductor Cross-section Solid: 1-35 mm²
Explosion Protected: No

Hager Circuit Breaker MBN116: Additional Details
Single-pole circuit breaker with 6kA B-characteristic, 16A, 1 module. Circuit breaker according to DIN EN 60898-1 (VDE 0641-11) with delayed thermal tripping for overload protection and electromagnetic tripping for short-circuit protection. Suitable for retrofitting additional devices. Labeling option directly on the device and individual removal from the phase rail connection by unlocking the DIN rail quick fastening.

Key specifications

Circuit breaker type
Miniature circuit breaker
Length
67 mm
Width
90 mm
mounting style
Top-hat rail
number of poles
1
Item number
8784842

General information

Manufacturer
Hager
Category
Residual-current device
Manufacturer no.
MBN116
Release date
25.5.2018
Order quantity steps
10
Order quantity steps
10
Order quantity steps
10
Order quantity steps
10

Colour

Colour
Grey
Exact colour description
Grey

Circuit Breaker Features

Circuit breaker type
Miniature circuit breaker
mounting style
Top-hat rail
number of poles
1
Tripping characteristic
B
Rated current
16 A
Rated voltage
400 V
voltage type
AC
Rated insulation voltage Ui
500 V
Residual current (rated differential current)
6000 A
Protection type (IP code)
IP20

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
67 mm
Width
90 mm
Height
83 mm
Weight
90 g

Package dimensions

Length
28 cm
Width
20 cm
Height
4 cm
Weight
90 g
