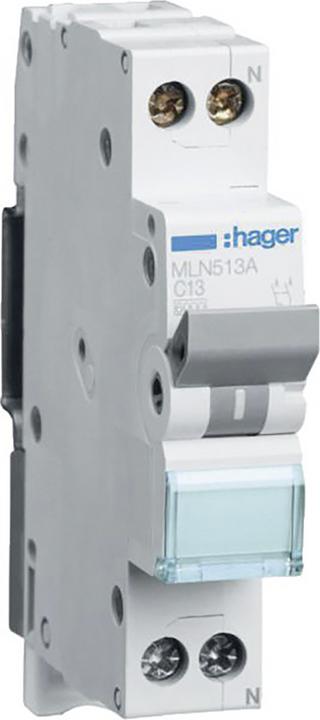

The Hager 1P+N 6kA C-13A 1M miniature circuit breaker is a reliable device designed to protect electrical wiring in residential and commercial installations. This miniature circuit breaker offers high immunity to interference with an interference voltage resistance of 4000 V and is suitable for frequencies of 50/60 Hz. With a fused pole and a type C tripping characteristic, it is capable of effectively detecting and interrupting overload and short-circuit currents. The switch is designed for a rated current of 13 A and offers a residual current protection of 30 mA, making it a safe choice for various applications. It is easy to mount on a top-hat rail and the connection is made using screw technology, which ensures a stable and safe installation. The circuit breaker is manufactured in Switzerland and fulfils high quality standards. Circuit-breaker type: Circuit-breaker with 1 fused pole. Tripping characteristic: Type C. Resistance to interference voltage: 4000 V. Residual current protection: 30 mA. Mounting type: Top-hat rail with screw technology.
Circuit breaker type | Miniature circuit breaker |
Length | 70 mm |
Width | 18 mm |
number of poles | 1 |
Mounting type | Top-hat rail |
Item number | 10870731 |
Manufacturer | Hager |
Category | Residual-current device |
Manufacturer no. | MLN513A |
Release date | 26.3.2019 |
Sales rank in Category Residual-current device | 18 of 28452 |
Colour | Grey |
Exact colour description | Grey |
Circuit breaker type | Miniature circuit breaker |
Mounting type | Top-hat rail |
number of poles | 1 |
Tripping characteristic | C |
Rated current | 13 A |
Rated voltage | 400 V |
voltage type | AC/DC |
Rated insulation voltage Ui | 500 V |
Residual current (rated differential current) | 6000 A |
Protection type (IP code) | IP20 |
Country of origin | Switzerland |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
Length | 70 mm |
Width | 18 mm |
Height | 85 mm |
Weight | 530 g |
Length | 17 cm |
Width | 8.40 cm |
Height | 2.60 cm |
Weight | 105 g |
