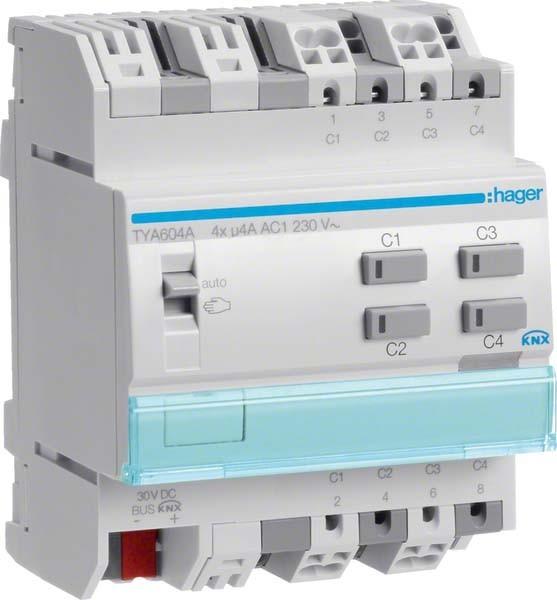

Hager KNX Switching/shutter output. 4-fold 4A TYA604A

Switch/Jalousie actuator 4/2-fold, 4A, KNX. Switching output for controlling 4 socket or lighting outputs or 2 blinds. For lighting control, options include On/Off, timer control, safety off, forced control, lock, logic, preset, delay function, or 64 scene functions per channel. With a toggle function for time or duration. The blind function allows for up/down/stop commands and adjustment of the slat angle. Percentage control of the blind to move to a predefined position. The sun protection function can control brightness per room in conjunction with an external sensor. Alarm function to control the blind to a defined position. Safety descent as long as the button is pressed. 64 scene functions per channel. Logic block to control the output based on the result of a logical conjunction. Preset, lock function, forced control. The device converts bus information into corresponding commands. The outputs are switched via the system line from their assigned inputs. All outputs have manual control on the device, which can also be locked, as well as a switching status indicator via LED and an operating hour counter per output. The device can be read with a diagnostic tool. Labeling options directly on the device.
