−6%

Hager KDS463AT

was CHF17.70
Ratings
Delivered between Thu, 31.7. and Thu, 21.8.
Free shipping starting at 50.–

Product details

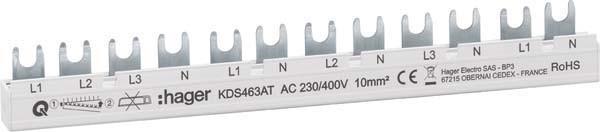

Hager Phase Rail 12 Modules KDS463AT

Manufacturer: Hager
Description: Phase rail 12 modules 63A L1L2L3N-L1N-L2N
Type: KDS463AT
Number of Phases: 3
Number of Poles: 4
Suitable for Number of Devices: 5
Division Size: 17.8 mm
Cross Section: 10 mm²
Length: 215 mm
Cuttable: no
Width in Division Units: 12
Rated Continuous Current Iu: 63 A
Type of Electrical Connection: Fork
Insulated: yes
Rated Impulse Voltage: 4 kV
Max. Rated Operating Voltage Ue: 400 V
Suitable for Devices with Neutral Conductor: yes
Suitable for Devices with Auxiliary Switch: no
Color: gray

Hager Phase Rail 12 Modules KDS463AT: additional details
Phase rail 12 modules 63A L1L2L3N-L1N-L2N-L3N-L1N QuickBusbar. Compact horizontal phase rails. Maximum touch protection and safety through permanently mounted side parts for the insulation of the copper rails.
EAN: 3250613710064.

Key specifications

Length
215 mm
Width
12 mm
Item number
33494512

General information

Manufacturer
Hager
Category
Wiring closet technology
Manufacturer no.
KDS463AT
Release date
17.5.2023
Sales rank in Category Wiring closet technology
66 of 10758

Colour

Colour
Grey
Exact colour description
Grey

Distribution cabinet technology Features

Area of use
Inside
Nominal current
63 A
Nominal voltage
400 V
number of poles
4
Divisions
12 x
input voltage
230 - 400 V

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
215 mm
Width
12 mm
Depth
215 mm

Package dimensions

Length
29.70 cm
Width
9.80 cm
Height
3.90 cm
Weight
128 g

30-day right of return if unopened
24 Months Warranty (Bring-in)
