Hager HAGE circuit breaker

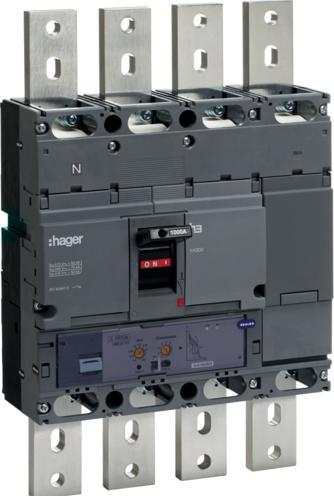

Hager Circuit Breaker HNE971H

Manufacturer: Hager
Designation: Circuit breaker h1000 4P 50kA 1000A
Type: HNE971H
Rated continuous current Iu: 1000 A
Rated voltage: 220..690 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz: 50 kA
Overload release current setting: 400..1000 A
Setting range of the short-time delayed short-circuit release: 0 A
Setting range of the instantaneous short-circuit release: 5600..10000 A
Integrated earth fault protection: no
Connection type for main circuit: screw connection
Device design: built-in device fixed installation technology
Suitable for DIN rail mounting: no
DIN rail mounting optional: no
With trip indicator: no
With integrated undervoltage release: no
Number of poles: 4
Position of the connection for main circuit: front
Design of the operating element: knob
Complete device with protection unit: yes
Integrated motor drive: no
Optional motor drive: yes
Protection class (IP): IP40

Hager Circuit Breaker HNE971H: additional details
Circuit breaker size h1000 4-pole 50kA 1000A with electronic setting. Circuit breaker according to DIN EN 60947-2 size h1000, with electronic setting. Thermal release, magnetic release, and short-time delay to protect electrical systems and networks. Mounting on mounting plate. The position of the knob indicates the three different operating states (ON = top, OFF = bottom, tripped = middle position). The switches feature a mechanical test button. The functionality of the circuit breakers can be expanded with various accessories. Includes phase separation walls and connection flags.
