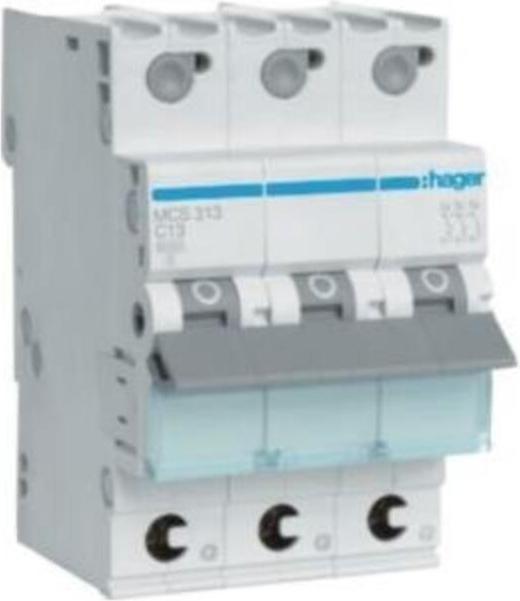

Hager HAG MCS313 C13 built-in automatic 3p Quick Connect

Ratings
BrandMore from Hager
Delivered between Wed, 10.6. and Thu, 18.6.
Only 2 pieces in stock at supplier
Free shipping starting at 50.–

Product details

Hager circuit breaker MCS313

Manufacturer: Hager
Description: Circuit breaker 3p, C-13A 6kA 3M QC
Type: MCS313
Installation depth: 70 mm
Tripping characteristic: C
Number of poles (total): 3
Number of protected poles: 3
Rated current: 13 A
Rated voltage: 400 V
Rated insulation voltage Ui: 500 V
Rated impulse voltage withstand Uimp: 4 kV
Voltage type: AC
Rated breaking capacity Icn according to EN 60898 at 400 V: 6 kA
Rated breaking capacity Icu according to IEC 60947-2 at 400 V: 10 kA
Frequency: 50-60 Hz
Energy limitation class: 3
Flush-mounted: Yes
Switchable neutral conductor: No
Overvoltage category: 3
Degree of pollution: 2
Additional devices possible: Yes
Width in division units: 3
Protection class (IP): IP20
Ambient temperature during operation: -25 to 70 °C
Connectable conductor cross-section multi-stranded: 1 to 25 mm²
Connectable conductor cross-section single-stranded: 1 to 35 mm²
Explosion-proof: No

Hager circuit breaker MCS313: additional details
3-pole circuit breaker 6kA C-characteristic 13A QuickConnect 3 modules. Circuit breaker with QuickConnect terminal according to DIN EN 60898-1, outgoing up to 16A and incoming for distribution up to 63A, with time-delayed thermal tripping device for overload protection and electromagnetic tripping device for short-circuit protection. Suitable for retrofitting additional devices. Labeling option directly on the device and individual removal from the phase rail connection by unlocking the DIN rail quick fastening.

Key specifications

Circuit breaker type
Miniature circuit breaker
Mounting type
Flush-mounted
number of poles
3
Length
70 mm
Width
133.35 mm

General information

Item number
32149731
Manufacturer
Hager
Category
Residual-current device
Manufacturer No.
MCS313
Release date
16.11.2022
External links
Manufacturer's site (de)

Circuit Breaker Features

Circuit breaker type
Miniature circuit breaker
Mounting type
Flush-mounted
Mounting type
Engagement
number of poles
3
Tripping characteristic
C
Rated current
13 A
Rated voltage
400 V
voltage type
AC
Insulation voltage (Ui)
500 V
Protection type (IP code)
IP20

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
18.08 kg
Climate contribution
CHF 0.43

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
70 mm
Width
133.35 mm
Height
70 mm
