Hager HAG FL102A Cabinet 300x250x160mm ORION SKI

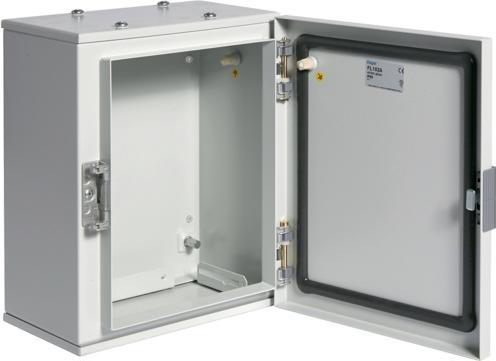

Hager Cabinet Orion FL102A

Manufacturer: Hager
Designation: Cabinet Orion SKI
Type: FL102A
Mounting type: Surface-mounted
Cover type: Door
Cover design: with cutout
Door type: Single
Transparent cover/door: no
With lock: yes
Rated current (In): 630 A
Height: 300 mm
Width: 250 mm
Depth: 160 mm
Installation depth: 160 mm
Internal depth: 160 mm
Material thickness of housing: 2 mm
Material thickness of door/cover: 21.5 mm
Color: gray
RAL number: 7035
Number of rows: 1
Number of openings for flange plates: 2
Mounting option: yes
Number of cable entries: 2
Material of housing: Steel
Surface protection: powder-coated
With mounting plate: no
Suitable for outdoor use: no
Suitable for lightning protection: no
Protection class (IP): IP65
Protection class: I
Impact resistance: IK10
Function maintenance: none
Cover with pressure relief: no

Hager Cabinet Orion FL102A: additional details

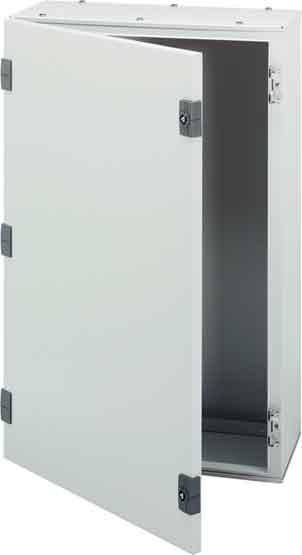

Orion cabinet, sheet steel, protection class I, 300 x 250 x 160 mm. Empty housing made of sheet steel, suitable for the construction of switchgear combinations according to DIN EN 61439-1/3, protection class IP 65. For installation of devices on galvanized or insulated mounting plate. This wall-mounted distribution board is suitable for installation in indoor areas as well as in aggressive environmental conditions and high mechanical stress. Consists of a base without pre-formed cable entry. Surface-mounted door with foamed seal and one or two locks with 3 mm double-bit insert, interchangeable with other locks, door hinge on the right.
