Product details

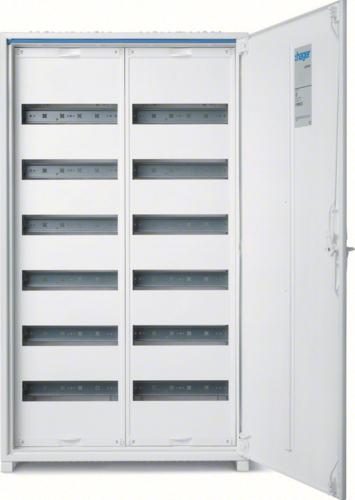

Field distributor AP certified according to DIN EN 61 439-1/-3, dimensional standard according to DIN 43 870. Designed for installation of devices up to 125 A, with air and creepage distances according to VDE 0110/1-2. The cabinet features a door made of powder-coated and baked sheet steel. Starting from a cabinet width of 800 mm (3 bays), it has a two-door construction. The right doors can be a maximum of 2 bays wide. The complete cabinet comes with an installation kit that includes profiled mounting rails, 7.5 mm high top-hat rails with 125 mm center-to-center spacing, and matching contact hazard protection covers, including PE/N QuickConnect terminals mounted on support. Cable entries are available at the top and bottom through removable flexible plastic flange plates, which are additionally exchangeable. The door has internal adjustable hinges and an opening angle of 110°. Doors can be hinged on the right or left and feature a tool-free exchangeable door hinge. The door lock comes standard with a three-point rod lock and a sealable folding handle. Interchangeable lockable locking systems and doors are available as accessories.
