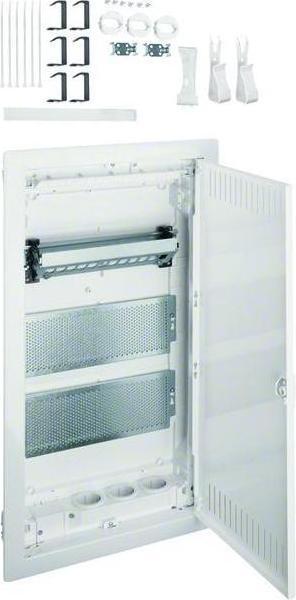

Hager Flush-mounted small distribution board

Multimedia, volta, UPV, 3-row, with slotted steel door. Surface-mounted installation small distribution board made of plastic, compliant with DIN VDE 61439-3, suitable for use in residential buildings according to DIN 18015 and for the installation of protective insulated VDI components. Protection class IP30, protection class II, protection insulated. Consisting of: plastic wall box with standard cable catch, break-out cable entry slider with snap fastening, integrated spirit level, and galvanized steel mounting brackets. Rotatable frame with ventilation door made of powder-coated and baked steel sheet, with 15 mm plaster compensation. Ventilation door, flush with the front, featuring internal manually operated hinges. Door lock with flush handle recess and self-retracting handle, door hinge on the right or left without the need to dismantle the frame. Upper connection area: Patch panel and DIN rail insulated and snapped in for accommodating various communication modules; screw fastenings are available on the patch panel for the required functional potential equalization according to DIN EN 50310 VDE 0800-2-310. Labeling option with included labeling strip for port labeling. Pre-mounted perforated mounting plates made of galvanized steel sheet with 3.2 mm perforation are installed. A universal holding bracket can be hung directly onto the perforated sheet for screwless mounting of VDI components. In the lower connection area, a 3-fold protective contact socket is mounted, rotatable by 90 degrees. The sockets can be directly connected via a terminal block. The sockets can be equipped with an included protective contact cover to comply with protection class II. VU36NW.
