Hager Field distributor

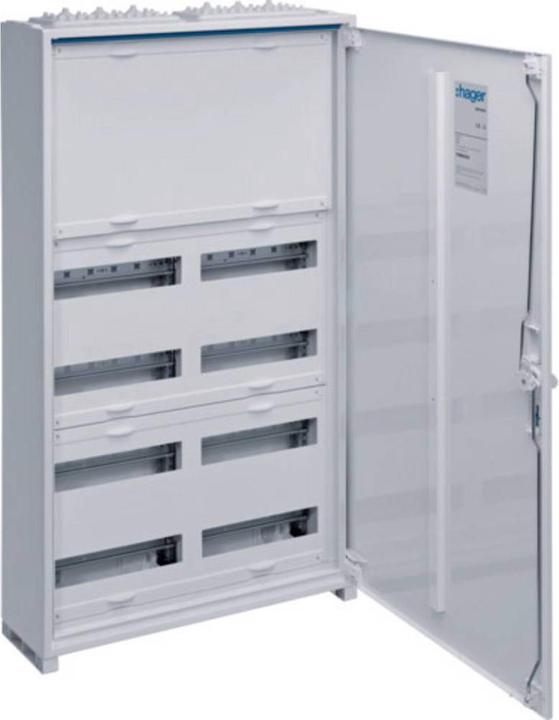

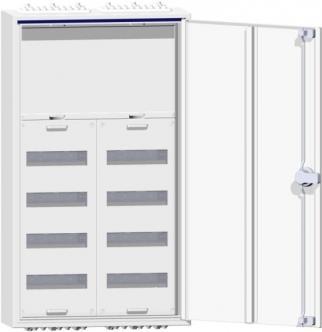

Panel distributor AP certified to DIN EN 61 439-1/-3, dimensional standard to DIN 43 870. Designed for installation of devices up to 125 A, with air and creepage distances compliant with VDE 0110/1-2. The cabinet features a door made of powder-coated and baked sheet steel. Starting from a cabinet width of 800 mm (3 bays), it has a two-door construction, with right doors a maximum of 2 bays wide. The complete cabinet includes an installation kit equipped with profiled mounting rails; the top two rows have 15 mm high top-hat rails for terminal blocks at 150 mm spacing and a closed cover, while the bottom rows feature 7.5 mm high top-hat rails at 150 mm center-to-center spacing, along with matching contact hazard protection covers. Cable entries are located at the top and bottom, using removable flexible plastic flange plates that are additionally exchangeable. The door has internal adjustable hinges with an opening angle of 110°. Doors can be hinged on the right or left, with tool-free exchangeable door hinges. The door lock features a standard three-point rod lock and a sealable folding handle, which is also exchangeable.
