Product details

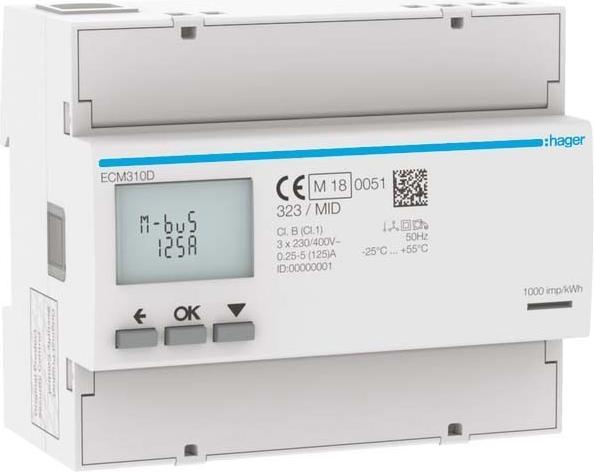

The Hager ECM310D is a highly advanced three-phase energy meter designed for the precise measurement of energy consumption and delivery in various network systems. With a maximum current of 125 A and the capability for four-quadrant measurement, this device provides a comprehensive solution for monitoring energy usage. The meter is MID-certified, allowing for reliable billing of energy consumption and delivery. Equipped with a backlit digital display, the ECM310D shows a variety of measurements, including active and reactive energy, as well as real-time data for active power, reactive power, apparent power, voltage, current, and power factor. The ability to control via Mbus and the IR interface for data transmission make it a flexible tool for modern energy management systems. Additionally, wiring and connection errors are displayed, enhancing the safety and reliability of the device.
- MID-certified for reliable billing
- Backlit digital display for clear readings
- Real-time measurements for multiple electrical parameters
- Two tariff counting via 230 V AC or Mbus
- Error indication for wiring and connection faults.
Maximum current | 125 A |
mounting style | Top-hat rail |
Nominal voltage | 160 V |
Item number | 32036910 |
Manufacturer | Hager |
Category | Energy monitors |
Manufacturer no. | ECM310D |
Release date | 28.6.2023 |
mounting style | Top-hat rail |
Maximum current | 125 A |
Nominal voltage | 160 V |
Display type | Digital |
Tariff execution | Multitariff |
Pulse output | Optical |
Polar type | Four-wire, Three-wire |
Accuracy class | B |
Protection type (IP code) | IP20 |
Country of origin | Poland |
CO₂-Emission | |
Climate contribution |
Height | 92 mm |
Length | 60 mm |
Width | 107 mm |
