Hager CDA640D

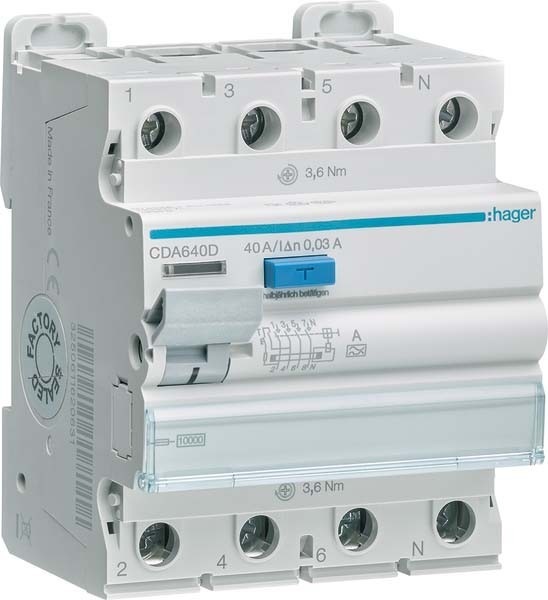

Hager Residual Current Circuit Breaker CDA640D

Manufacturer: Hager
Designation: Residual Current Circuit Breaker 4p 10kA 40A 30mA A
Type: CDA640D
Number of Poles: 4
Rated Voltage: 400 V
Rated Current: 40 A
Rated Residual Current: 0.03 A
Rated Insulation Voltage Ui: 500 V
Rated Impulse Voltage Resistance Uimp: 4 kV
Power Loss: 4.39 W
Mounting Type: DIN Rail
Residual Current Type: A
Selective Type: No
Short-Time Delayed Type: No
Short-Circuit Strength (Icw): 10 kA
Surge Current Strength: 3 kA
Voltage Type: AC
With Locking Device: Yes
Frequency: 50 Hz
Additional Devices Possible: Yes
Protection Class (IP): IP20
Width in Division Units: 4
Installation Depth: 70 mm
Ambient Temperature During Operation: -25..70 °C
Degree of Pollution: 2
Connectable Conductor Cross-Section Multi-Wire: 1..16 mm²
Connectable Conductor Cross-Section Single-Wire: 1..25 mm²
RAL Number (Similar): 7005
Explosion-Proof: No

Hager Residual Current Circuit Breaker CDA640D: Additional Details
4-pole residual current circuit breaker 10kA 40A 30mA Type A. Residual current protective switch (RCD) according to DIN EN 61008-1 (VDE 0664-10), DIN EN 61008-2-1 (VDE 0664-11) with Bi-Connect terminals at the bottom, external blue test button, and residual current indicator. Suitable for retrofitting additional devices. Connection terminals with wire insertion protection, labeling option directly on the device.
