Hager Busbar terminal

Ratings
tonight with flash delivery
to check if flash delivery is available to you.
Free shipping starting at 50.–

Product details

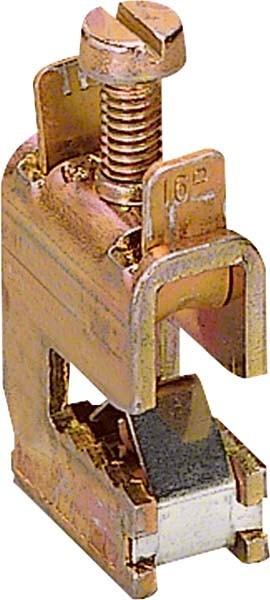

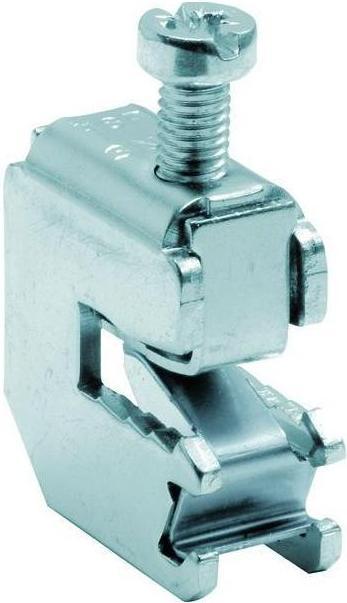

Hager busbar terminal K96Q

Manufacturer: Hager
Description: Busbar terminal 16 mm², for flat bar 12x5 mm
Type: K96Q
Busbar thickness: 5 mm
Busbar width: 10 mm
Width of terminal: 11.5 mm
Max. conductor cross-section: 16 mm²
Suitable for round conductor connection: Yes
Suitable for sector conductor connection: No
Suitable for strip conductor connection: No

Further details: Busbar terminal 1.0 - 16 mm², for busbars 12x5 mm, for copper conductors.

Key specifications

Length
9 mm
Width
11.50 mm
Height
22 mm
Item number
25266701

General information

Manufacturer
Hager
Category
Wiring closet technology
Manufacturer no.
K96Q
Release date
20.4.2023
Sales rank in Category Wiring closet technology
60 of 10758

Material

Material group
Metal
Material
Steel

Distribution cabinet technology Features

Nominal current
180 A

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
9 mm
Width
11.50 mm
Height
22 mm

Package dimensions

Length
4.10 cm
Width
2.50 cm
Height
1.10 cm
Weight
24 g
