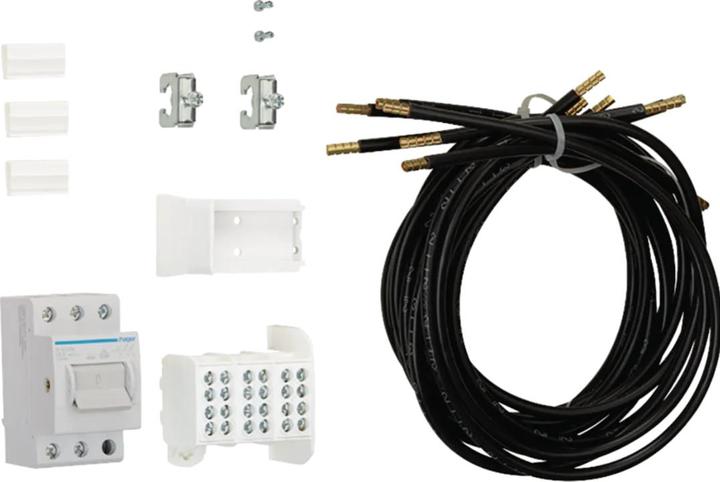

Hager Assembly package universZ 1-Zp.-PV ZY02PV

Universal assembly package Z, 10 mm², PV surplus, ZTP 750 mm up to 32 A continuous current. Meter cabinet solution with cabinet housing according to DIN VDE 0603/1, dimensional standard DIN 43 870 for surface-mounted, flush-mounted, or partially recessed installation. Consisting of a cabinet with a door made of powder-coated, baked-on, sturdy profiled 1 mm thick steel sheet. Interior lining completely made of plastic. Cable entries at the top and bottom through built-in plastic flange plates. Rear pre-formation in the plastic part. Busbar passages as tool-free side flanges that can be opened on both sides in the lower area, allowing for busbar connections between different cabinets or in conjunction with a cable junction box and connection set. In addition to the passage in the NAR, there are also openings in the area of the AAR (for heights of 1100 and 1400 mm) and RfZ (for height of 1100 mm). Door flush with the front, with internal adjustable hinges, optionally hinged on the right or left with a 110° opening angle. Door lock with pre-lock. Door lock can be replaced with other locks. Cabinets can be flanged side by side and stacked on top of each other. Cabinet size 1 to 5 fields with 72 to 540 space units (PLE). Note: The main line must be introduced from below or the side into the lower connection area of the meter cabinet and connected there according to VDE-AR-N 4100:2019-04. Height: __ mm (1100 mm or 1400 mm) Width: __ mm Depth: 205 / 160 mm, RAL color: 9010 Protection class 44, protection class II Rated current of the busbar system 250 A Execution according to VDE-AR-N 4100:2019-04 Meter installation for __ meter space(s). According to the technical connection conditions (TAB) of the VNB __ for: __ Electronic household meters (eHZ) or __ meters with 3-point fixation (3HZ). __ for supply systems with household consumption max. 63 A (10 mm²) according to DIN 18015-1 ( __ apartments, __ general, __ reserve, __ heat pump) __ for continuous current applications max. 32 A (10 mm²) according to VDE-AR-N 4100:2019-04.
