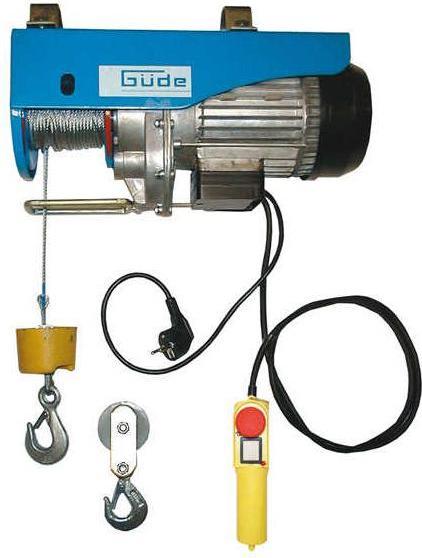

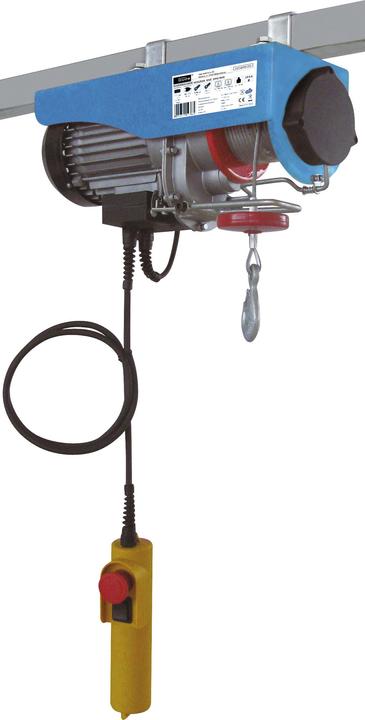

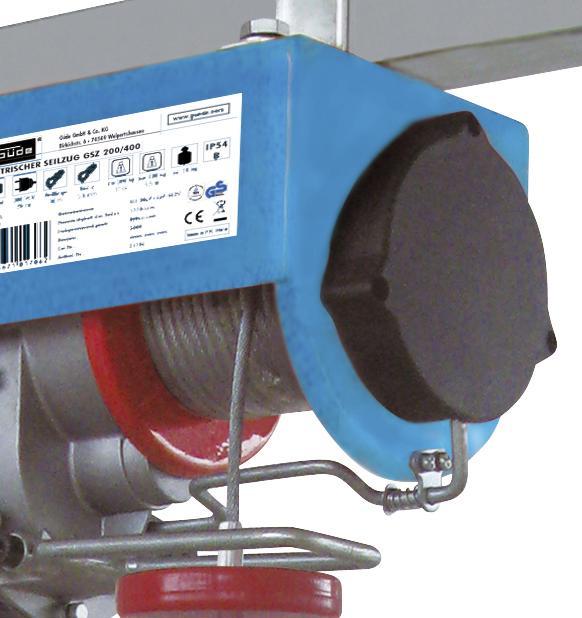

For moving and lifting loads up to 400 kg. TÜV/GS tested.
Connection:230 V
Motor power:780 W

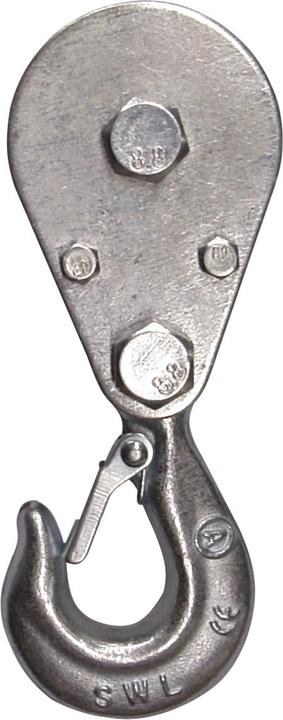

Max. Lifting capacity:200 kg (without pulley)400 kg (with pulley)
Max. Lifting height:11 m (without pulley)5.5 m (with pulley)
Ø Lifting speed:10 m/min. (without pulley)5 m/min (with pulley)
Rope weight:length 12 m)Ø 3.5 mm
Weight (approx.):16.5 kg

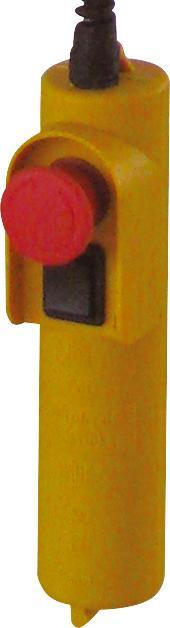

Operating cable:l1,6 m
2 years warranty!.
Load capacity | 400 kg |
Lifting height | 11 m |
Power supply | Electrical connection |
Weight | 16.50 kg |
Item number | 10597000 |
Manufacturer | Güde |
Category | Hoists + workshop cranes |
Manufacturer no. | 1706 |
Release date | 19.2.2019 |
Exact colour description | Blue |
Colour | Blue |
Load capacity | 400 kg |
Lifting height | 11 m |
Main Hub | 10 m/min |
Strand material | Tightrope |
Power supply | Electrical connection |
Mains voltage | 230 V |
Cable length | 1.60 m |
Power | 750 W |
CO₂-Emission | |
Climate contribution |
Length | 1200 cm |
Width | 1100 cm |
Height | 1100 cm |
Weight | 16.50 kg |
