G.SE GSE temperature min/max hysteresis controller 10A

GSE temperature min/max hysteresis controller 1A

The min/max hysteresis controller is a temperature-dependent speed controller for ventilated rooms for one or more extract air fans. The controller keeps the room temperature constant and prevents the speed from falling below the set minimum speed and from exceeding the maximum speed to reduce noise. The hysteresis determines the control range. It is easy to operate; the desired temperature, minimum speed, maximum speed, and hysteresis are set using four buttons.

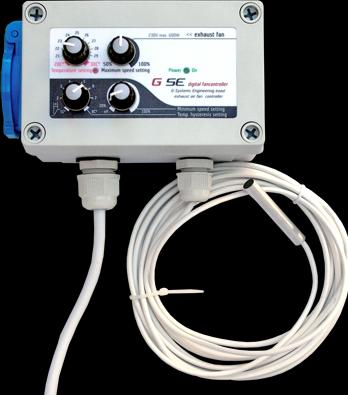

The min/max hysteresis controller is supplied as a single unit and is ready for use. This reliable fan controller comes complete in a waterproof housing, plug with hinged cover, and a digital low voltage sensor, making it the perfect controller for humid rooms. The sensor is supplied with a 4 metre cable and can be extended up to 50 metres if required.

Sizes and technical data:

Housing: WxHxD = 130x80x70mm
Fan controller: WxHxD = 160x100x90mm
Designed for: 10A
Volt: 230V / 50Hz
Digital sensor: 5V, measures temperatures from -55°C to +125°C (-67°F to +257°F) with 0.5°C accuracy from -10°C to +85°C
Protection class: IP54

Setting options:

Temperature: 20°C to 30°C
Minimum speed: off, 20% to 100%
Maximum speed: 100% to 50%
Vacuum: 100% to 50%.
