Product details

Grothe micro-connection sleeve DINO Y
Manufacturer: Grothe
Designation: Micro-connection sleeve
Type: DINO Y
Rated voltage U0/U (Um): 0.6/1 (1.2) kV
Type: Y-branch
Version: Gel
Number of conductors: 15
Conductor cross-section branch cable: 1.5 to 2.5 mm²
Conductor cross-section main cable: 4 to 6 mm²
Cable diameter branch cable: 14 to 19 mm
Mining approval: No
Connection accessories supplied: Screw connector
Suitable for: N(A)YY
Halogen-free: Yes

Grothe DINO Y micro-connection sleeve: further details

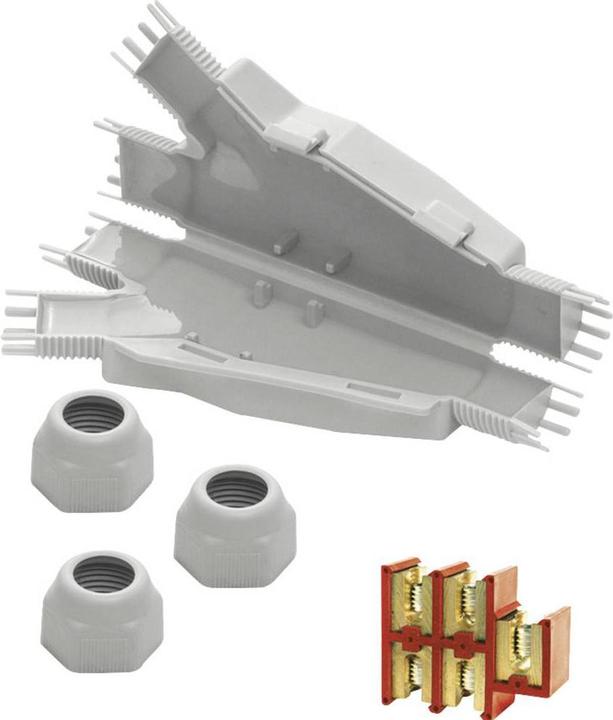

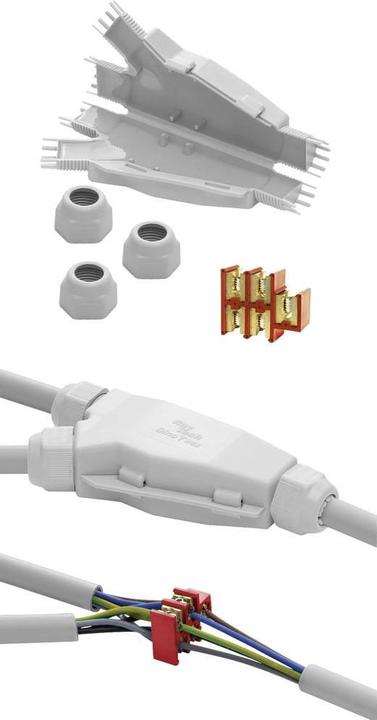

DINO Y micro-connection sleeve - for 3 cables up to 5 x 6 mm² including screw terminal. Protection class IP68/IP69K filled with non-toxic gel, unlimited shelf life. Halogen-free, UV-resistant, always accessible. Dimensions: 160 x 75 x 37 mm.

Key specifications

Colour
Grey
Clamps diameter
19 mm
Suitable for cable cross-section
4 mm²
Items per sales unit
1x

General information

Item number
33765829
Manufacturer
Grothe
Category
Cable joints
Manufacturer no.
84011
Release date
17.5.2023

Colour

Exact colour description
Light grey
Colour
Grey

Cable connection Properties

Clamps diameter
19 mm
Suitable for cable cross-section
4 mm²

Origin

Country of origin
Italy

Voluntary climate contribution

CO₂ emissions
0.25 kg
Climate contribution
CHF 0.11

Safety

Protection type (IP code)
IP68, IP69K

Scope of delivery

Scope of delivery
Always accessible, Barely visible, Complete with cable glands and screw terminal, Complete with clamps, Extremely compact and ready to use, Filled with non-toxic and non-classified gel, Gel-filled micro-connection sleeve with 5-wire entry and protection class IP68 / IP69K, Halogen-free and UV-resistant, Space-saving, With cable glands to prevent the cable from being pulled out unintentionally
Items per sales unit
1x

Product dimensions

Length
160 mm
Width
75 mm
