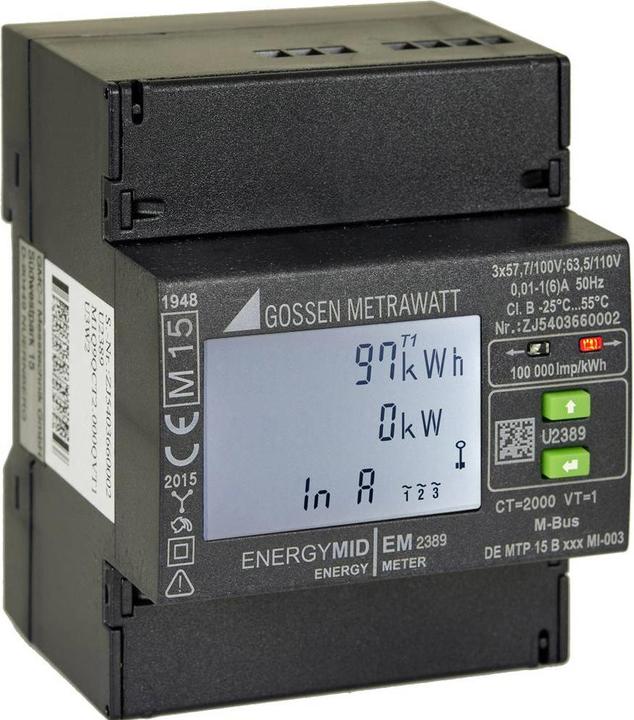

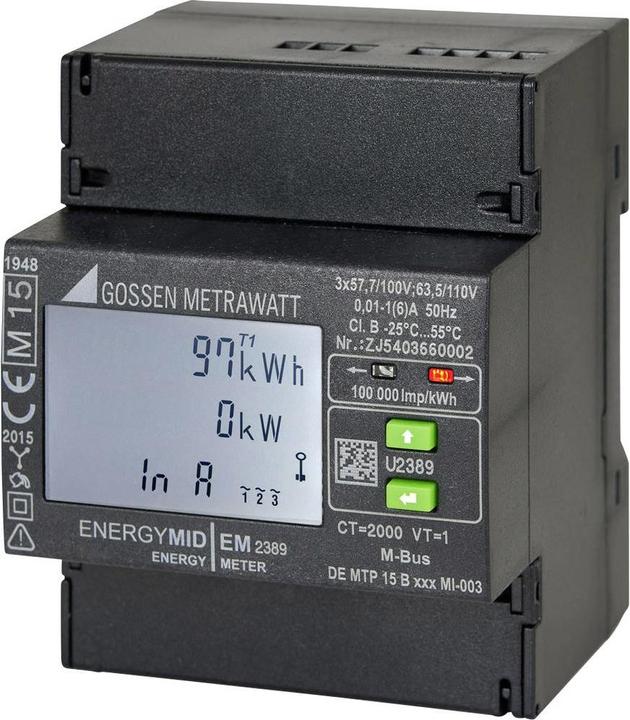

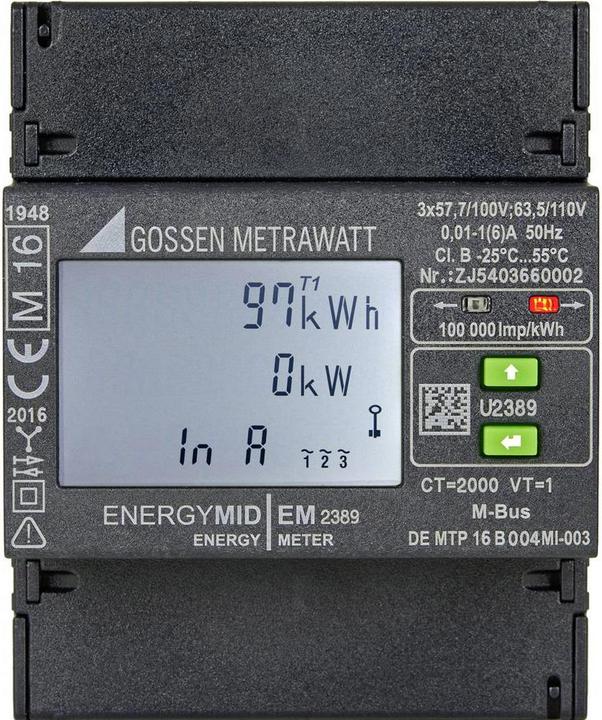

Gossen Three-phase meter with transformer

Ratings
BrandMore from Gossen
Delivered between Thu, 8.10. and Thu, 15.10.
More than 10 pieces in stock at third-party supplier
Supplied by
Conrad CH
free shipping

Show all

Product details

Multifunctional energy meter for 3-wire networks with 1(6) A and 5(6) A transformer connection. Simple network monitoring by capturing up to 33 additional measurement values. Measurement of active energy according to EN50470-3, Class B for industry and commerce, as well as increased requirements for household use. Suitable for billing purposes thanks to factory initial calibration according to MID. 4-quadrant measurement (feed-in and feed-out). Ultra-compact design (4 TE = 72 mm). Future-proof with 4 tariff inputs. Quick fault detection through color change on the display: phase rotation direction, phase failure, transformer polarity reversal, overload. High-contrast LCD display with backlighting. Universal pulse output (2-fold) with adjustable pulse rate, pulse duration, and selectable voltage range. Protection against tampering with a sealable cover and parameterization lock. Quality product, made in Germany. 3-year warranty.

Key specifications

Energy meter type
Energy meter
Mounting type
Top-hat rail
measurement module
Amp, Kilowatt hours, Volts
Maximum current
6 A

General information

Item number
8472946
Manufacturer
Gossen
Category
Energy monitors
Manufacturer No.
U2387-V012
Release date
21.4.2018

Colour

Colour
Black

Energy meter property

Energy meter type
Energy meter
Mounting type
Top-hat rail
measurement module
Amp, Kilowatt hours, Volts
Maximum current
6 A
Display type
Digital
Tariff execution
Multitariff
Pulse output
Electrical
Polar type
Three-wire
Accuracy class
B

Origin

Country of origin
China, Germany

Voluntary climate contribution

CO₂ emissions
1.69 kg
Climate contribution
CHF 0.11

Product dimensions

Height
70 mm
Length
90 mm
Width
72 mm
Weight
300 g
