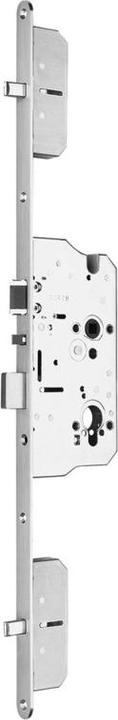

Glutz Panik-Mehrfachverriegelung MINT 18962 SV PB

Self-locking, 3-point locking, latch blocking, adjustable with comfort latch, 3 hardened bolts, throw of 20 mm, set for DIN left.

Self-locking multi-point locking system with integrated latch blocking, control of the exit, and panic function B. Suitable for main and secondary entrance doors with controlled push-button operation in residential and commercial construction. The panic function B features a split lock cylinder and separate mechanical push-button control (outside/inside), offering the ideal combination of access control and escape route. Access is regulated through the permanent coupling/decoupling of the outside push-button via the cylinder. The panic function allows exit from the panic side at any time. The robust construction is designed for the highest bolt lateral and counter forces according to EN 12209, allowing door systems to be built up to resistance class RC3.

To couple the outside push-button: Turn the key in the opening direction until the withdrawal position.
To decouple the outside push-button: Turn the key in the closing direction until the withdrawal position.

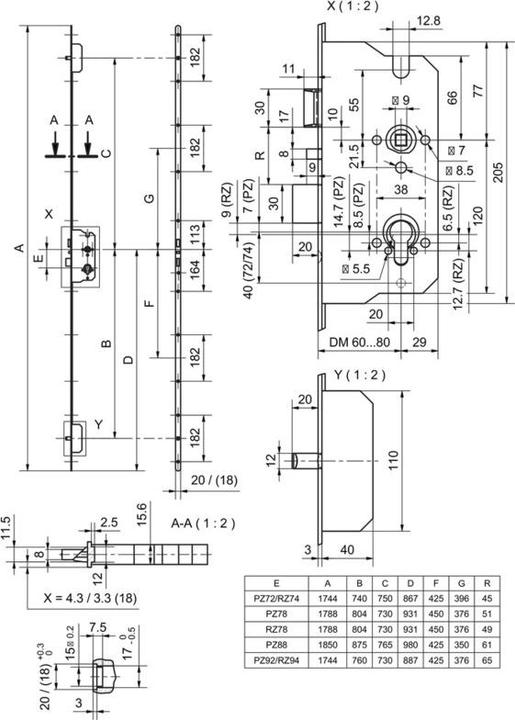

The cylinder screw is not centered on the profile. To determine the cylinder lengths: Center of the profile = center of the lock cylinder. No asymmetrical cylinders with L-coupling allowed. No reduction sleeves for the lock cylinder/spindle allowed. No external mechanical bolt contact recommended. The lock can only be combined with a fitting that has push-button retention.
