Product details

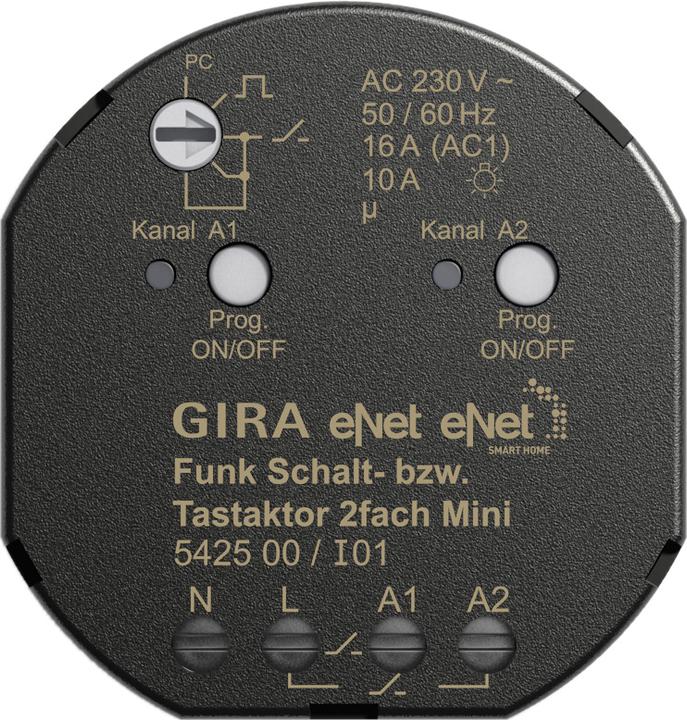

Gira wireless switch/touch actuator 542500
Manufacturer: Gira
Designation: Wireless switch/touch actuator mini 2-gang
Type: 542500
Bus system KNX: No
Bus system KNX radio: No
Bus system radio bus: Yes
Bus system LON: No
Bus system Powernet: No
Other bus systems: eNet
Mounting type: Flush-mounted
On-site/manual operation: No
With LED display: No
Max. switching capacity: 2300 W
Max. switching capacity LED: 500 W
Suitable for C-load: No
Max. number of switching outputs: 4
Max. switching current: 16 A
Rated operating voltage: 230 V
Different phases can be connected: No
With bus coupling: No
Modular expansion option: No
Protection class (IP): IP20
The Gira wireless switching/pushbutton actuator 542500 features adjustable settings with the eNet server, fully encrypted radio transmission (AES-CCM) from eNet server software version 2.0, and operating locks. It allows for the update of the device software. This actuator enables the switching of lighting and motors with the following operating modes: switch actuator or push button actuator for both outputs, status feedback to eNet radio transmitter, and scene operation.
Pushbutton operating mode allows the relay contact to remain closed as long as telegrams are received (max. 60 seconds). Additional adjustable features include a flashing function, run-on time, switch-on or switch-off delay, switch-off pre-warning, minimum switching repetition time, continuous on, continuous off, and repeater function.
Localization of the device is also possible.
Notes: Mounting in device box, surface-mounted housing, or installation adapter.
EAN: 4010337774228.
