Gira Radio

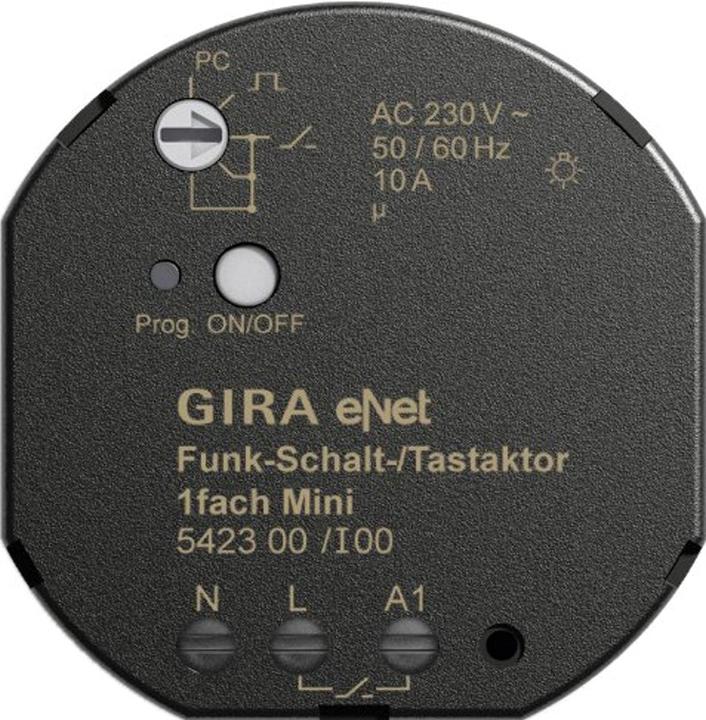

Gira wireless switch/touch actuator 542300

Manufacturer: Gira
Designation: Wireless switch/touch actuator mini 1-gang
Type: 542300
Bus system KNX: No
Bus system KNX radio: No
Bus system radio bus: Yes
Bus system LON: No
Bus system Powernet: No
Other bus systems: eNet
Mounting type: Flush-mounted
On-site/manual operation: No
With LED display: No
Max. number of digital inputs: 1
Switching capacity: 2300 W
Max. switching capacity LED: 500 W
Suitable for C-load: No
Max. number of switching outputs: 4
Max. switching current: 16 A
Rated operating voltage: 230 V
Different phases can be connected: No
With bus coupling: No
Modular expansion option: No
Protection class (IP): IP20

Gira wireless switching/pushbutton actuator 542300: further details
eNet wireless switching or pushbutton actuator, 1-gang Mini Features:
Adjustable with eNet server: Fully encrypted radio transmission (AES-CCM) from eNet server software version 2.0.
Operating locks.
Update of the device software.
The eNet wireless switch or push-button actuator enables the switching of lighting.
Operating modes: Switch actuator or push button actuator.
Status feedback to eNet wireless transmitter.
Scene operation.
Operating mode push buttons: Relay contact remains closed as long as telegrams are received (max. 60 seconds).
Adjustable with eNet server: Flashing function.
Run-on time.
Switch-on or switch-off delay.
Switch-off pre-warning.
Minimum switching repetition time.
Continuous on, continuous off.
Repeater function.
Localization of the device.

Notes: Mounting in device box, surface-mounted housing or in installation adapter.
EAN: 4010337774204.
