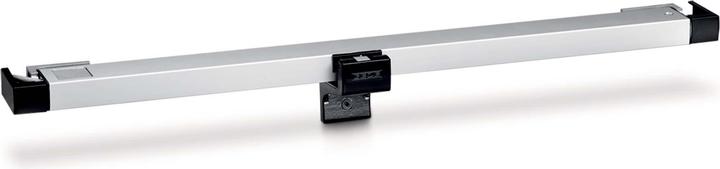

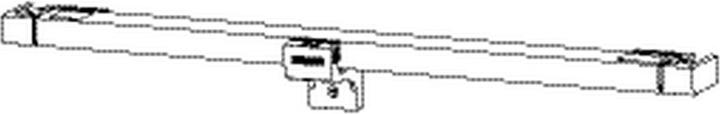

Geze SLIMCHAIN 800 24V L Chain drive EV1

Geze Chain Drive Slimchain 800 24V L

Manufacturer: Geze
Designation: Chain Drive EV1
Type: Slimchain 800 24V L
Push Force: 300 N
Max. Opening Width: 800 mm
Protection Class (IP): IP40
Housing: Other
Current Consumption: 0.9 A
Connection Voltage: 24 V
Length of Connection Cable: 2 m
Width: 44 mm
Height: 25 mm
Length: 810 mm

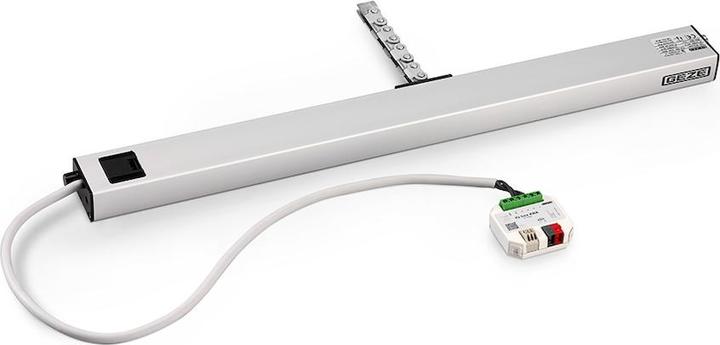

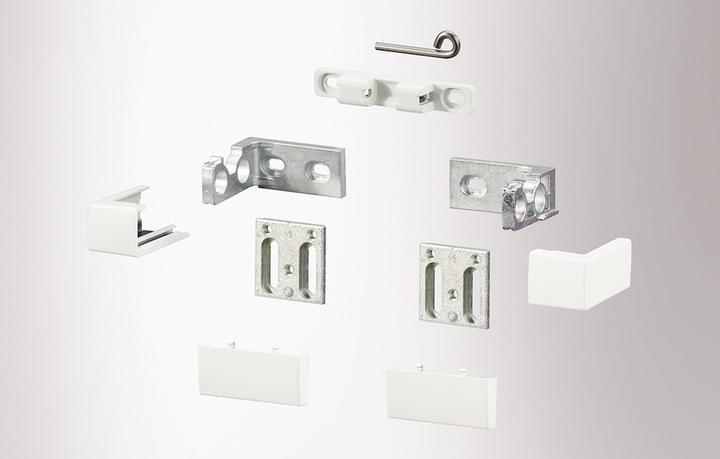

The Slimchain is universally applicable and offers a variety of parameterization options, such as stroke and speed. Due to its narrow and discreet design, this chain drive integrates optimally into the facade design. The drive stroke (stroke variants 300, 500, 800 mm) is infinitely adjustable. Individual speeds can be set for the ventilation and smoke extraction modes. The integrated Syncro module allows for the use of up to 3 drives on large and heavy windows without an external control unit. To switch the operating mode (Solo/Syncro, Master/Slave), the drive is equipped with a DIP switch. Installation can be done easily and quickly using the GEZE Smart Xx mounting system.
