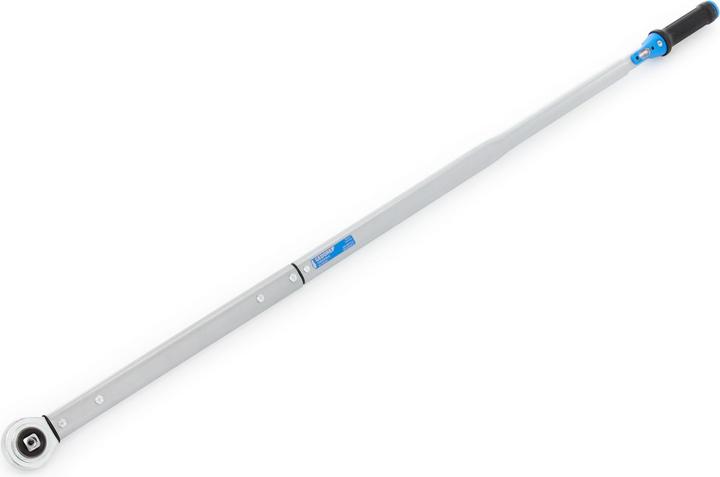

Gedore Torque spanner 4551-85 20 mm 250 - 850 Nm

Adjustable with square drive and integrated ratchet function for controlled right and left tightening by simply repositioning the mushroom head or mushroom head square drive with ball retainer. Square drive with pin retainer, audible and perceptible trigger signal, and triggering accuracy of ± 3% tolerance of the set scale value. Robust, lacquered tubular steel construction with high-quality plastic parts. Double scale N.m and lbf.ft. under a viewing window with magnifying glass effect. Additional micrometer scale with N.m graduation of 0.025 N.m. Ergonomic plastic handle with push-through square.

Further technical features include:

• Nonius graduation: 1 Nm
• Subject to inspection: yes
• Distance housing - square center 34.5 mm
• Drive square (inch) 3/4 inch
• Number of teeth: 36
• Tightening direction: left and right
• Release mechanism: short-stroke release
• Torque (min.): 250 Nm
• Application area: assembly, maintenance, and repair
• Total width: 70 mm
• Total height: 51 mm
• Content (number of pieces): 1
• Calibration length: 1275.7 mm
• Head width: 169 mm
• Head height: 138 mm
• Net weight: 5.4 kg
• Precision: ± 3%
• Test certificate: DIN EN ISO 6789-2:2017
• Swing back angle: 10°
• Scale type: Dual
• Target groups: automotive, industry, construction and commercial vehicles, consumers, energy, mechanical engineering, workshop, service, agriculture, oil & gas, utilities
• Torque (max.): 850 Nm
• Torque (max.) lbf-ft: 630 lbf.ft
• Torque (max.) lbf-ft (1): 185 lbf.ft

Supplied in a cardboard box, with operating instructions and declaration of conformity to DIN 6789.
