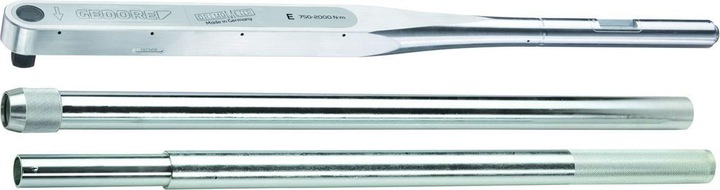

Gedore 8564-01 Torque spanner DREMOMETER E 750-2000 Nm

Application: Controlled screw tightening in the range of 750 - 2000 Nm. Suitable for use in almost all industrial production areas.

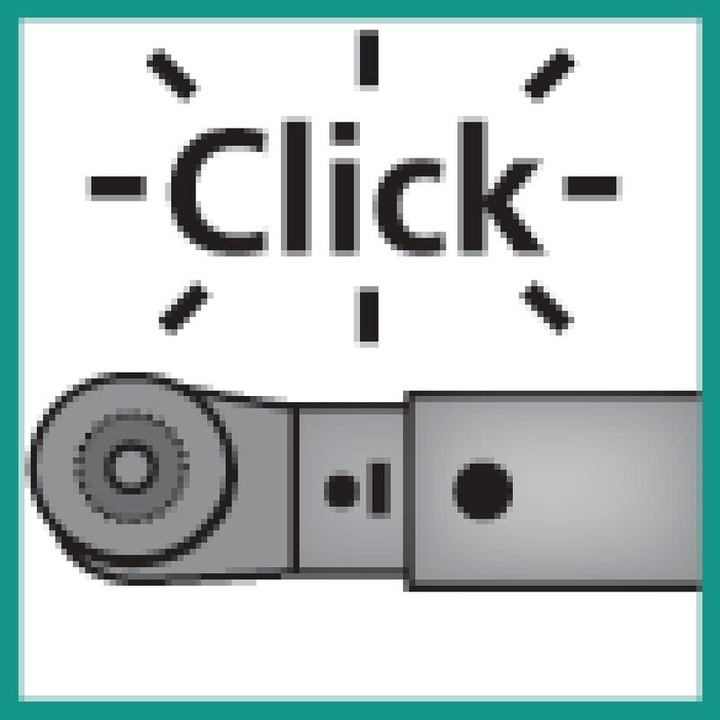

Design: Classified according to DIN EN ISO 6789-2:2017 Type II Class A, including a traceable test certificate. Calibrated to a maximum permissible deviation of +/- 3%, which is more precise than the +/- 4% required by the standard. Features a 1" square drive with pin lock DIN 3120 - B 25, ISO 1174. Automatic short-stroke release with tactile and audible signal. Single scale with a scale division of 50 Nm.

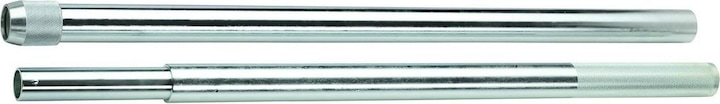

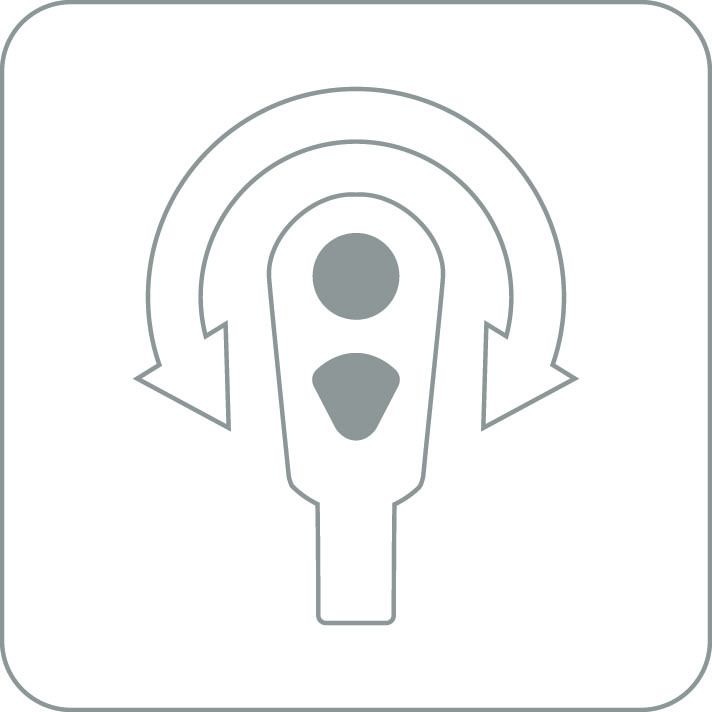

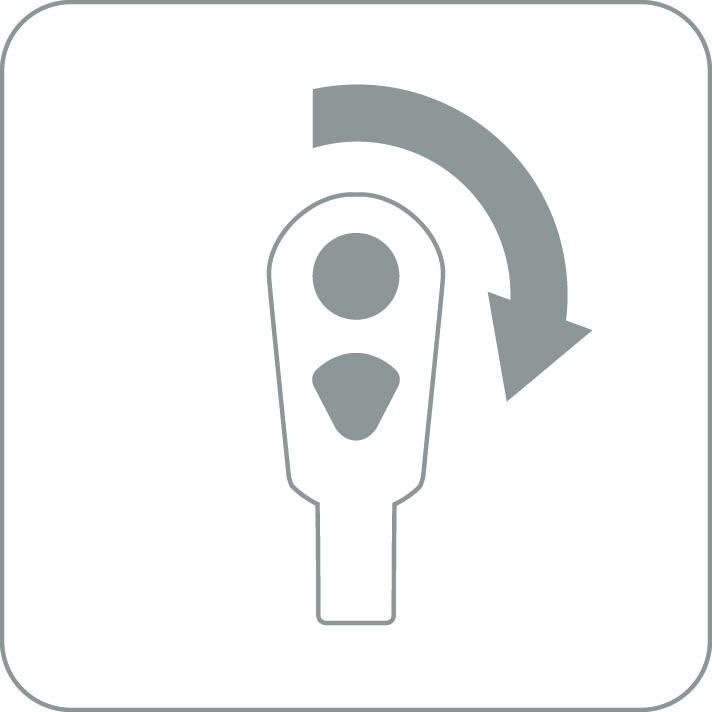

Technical advantage/function: Lightweight yet robust, as the housing is made of one piece of aluminum, making it insensitive and very workshop-friendly. No value shifts or influence on accuracy due to two-handed operation or operation outside the handle, unlike conventional torque spanners. Both the square drive and the pivot point are on the same axis, ensuring high application safety and can be extended to reduce the user's workload. Extremely low wear due to force reduction of the lever mechanism. Forged lever chain from the company's own quality forge. Highest precision even with heavy continuous use. Long service life and high durability. Simple operation for fast and safe torque tightening. Comfortable adjustment due to a shapely, captive adjustment knob at the end of the handle. Single and double square drive for controlled right-hand or left-hand tightening.
