Gedore 2653273 Torque spanner

3/4", 550 Nm, 2800 Nm
Ratings
Delivered between Thu, 4.9. and Sat, 27.9.

Product details

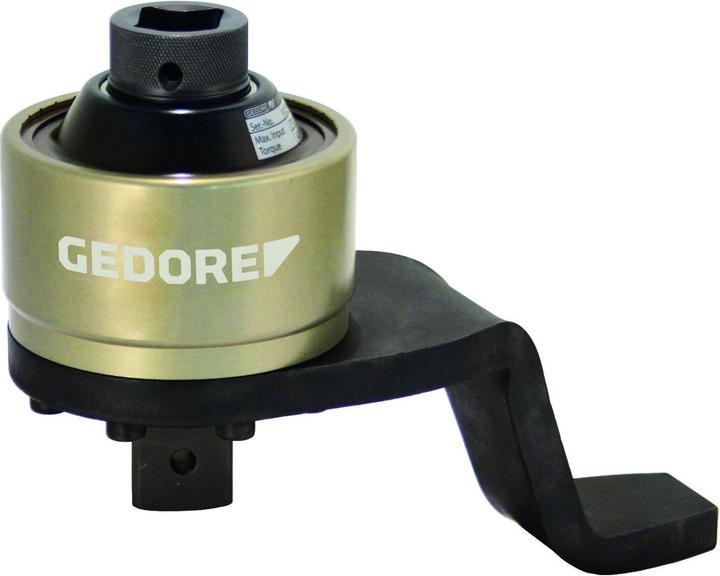

Mechanical, manually operated torque multiplier for controlled screw tightening and loosening screwed connections. It features a single-stage planetary gear and a housing made of high-performance aluminium. The accuracy is better than +/- 3% tolerance and it is to be operated with a torque spanner. The output square has a hole for power screw inserts with a locking pin and a ring with a cranked reaction arm in a Z-shape made of chrome vanadium steel.

Further technical features include:

  • Max output: 2050 lbf.ft
  • Transmission ratio: 1:5.5
  • Max input: 410 lbf.ft
  • Material: aluminium
  • Subject to inspection: yes

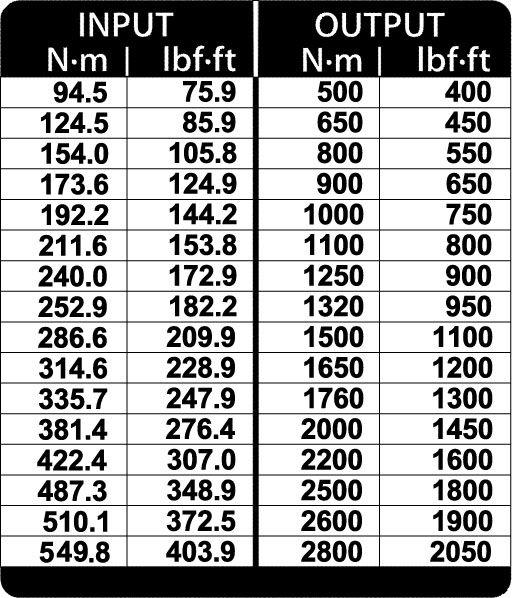

Supplied in a sturdy carrying case with foam insert, including a works test certificate and setting table.

Key specifications

Torque wrench Version
Square socket
Item number
20850766

General information

Manufacturer
Gedore
Category
Torque wrenches
Manufacturer no.
2653273
Release date
12.5.2022

Material

Material group
Metal
Material
Housing made of high-performance aluminium, Reaction arm made of chrome vanadium steel

Torque Wrench Features

Torque wrench Version
Square socket
Max. torque
2800 Nm
Min. torque
550 Nm
Inch Size
3/4"
Tightening direction
On both sides

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
in sturdy transport case with foam insert, incl. factory test certificate and adjustment table

Product dimensions

Length
230 mm
Width
106 mm
Height
146 mm
Weight
2400 g
