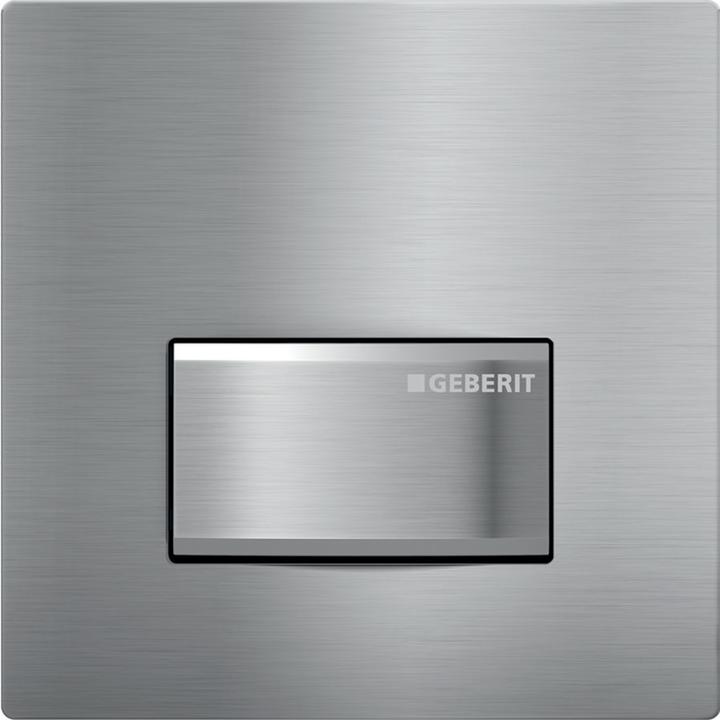

Geberit Urinal control type 50 pneumatic chrome brushed 116.016.GH.5

Applications for manual flushing of urinals for Geberit mounting elements for urinals with front operation for Geberit mounting elements for urinals with operation from above for installation in Geberit urinal control kits (from year of construction 2009).

Scope of supply:

• Operating plate type 50
• Pneumatic flush actuator, pre-mounted on mounting frame
• Pneumatic valve fastening material

Technical Data:

• Flow pressure: 100-800 kPa
• Maximum test pressure water: 1600 kPa
• Maximum test pressure air/inert gas: 300 kPa
• Relative humidity: < 100 %
• Maximum water temperature: 30 °C
• Active force: < 12 N
• Flow at 100 kPa without flow limiter: 0.3 l/s
• Flow at 100 kPa with flow limiter: 0.24 l/s
• Calculation flow rate: 0.3 l/s
• Minimum flow pressure for calculated flow rate: 100 kPa
• Flush time setting range: 4/8/12 s

Properties:

• Operating plate with safety latch
• Flush time adjustment with air (pneumatic)
• Low trigger force
• Low lifting motion
• Flush release when releasing the control button
• Flush quantity via throttle screw of the raw kit can be reduced to 0.5 l per flush
• Fitting group II according to DIN 4109.
