Geberit Piave basin mixer, 167 cm projection, mains operation, without mixer, for concealed function

Geberit Piave washbasin tap without mixer

Intended use:

• For tapping tap water
• For public areas
• For installation in washbasins or washbasin plates
• For installation in Geberit mounting elements for washbasins
• Electronic stand mixer with flush-mounted function box
• For installation in Geberit raw construction sets for electronic washbasin taps, free-standing, with flush-mounted function box
• For connecting cold or mixed water
• Suitable for instantaneous water heaters
• For use with stainless steel basins

Features:

• Stand mounting
• Automatic flush release
• Infrared user detection
• IR sensor self-adjusting
• Vandal-proof
• Volume flow limitation by jet regulator
• Power supply by mains adapter
• Thermal disinfection possible
• Adjustable energy saving mode
• Water saving due to fast dual-jet scanning technology
• Functions can be set and queried with Geberit service cell phone (not included in scope of delivery)
• Device setting and operation with mobile device via Bluetooth
• Geberit Control App compatible
• Wired networkable with Geberit Gateway via GEBUS converter
• Wireless networkable with Geberit Gateway via Bluetooth
• Geberit Connect compatible
• Program water saving and interval flush adjustable
• Continuous flushing individually adjustable
• Flush triggering can be deactivated
• Integrated backflow preventer
• Functional unit with built-in basket filters

Technical data:

• Protection class: IPX4
• Nominal voltage: 110-240 V AC
• Mains frequency: 50-60 Hz
• Operating voltage: 4.5 V DC
• Flow rate at 3 bar: 5 l/min
• Interval flushing setting range: 5-200 s
• Material: brass, plastic
• Projection: 167 mm
• Height: 193 mm

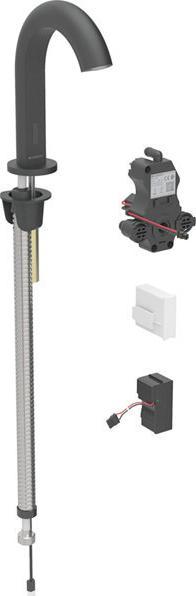

Scope of delivery:

• Washbasin faucet with infrared sensor and connection hose
• Control electronics
• Functional unit
• Power supply unit
• Key for aerator
• Mounting material.
