Ganter Indexing plunger GN 817 d1 8 mm d2 M 16 x 1.5 mm l1 12 mm steel, without indexing lock, with lock

Door knob
Ratings
BrandMore from Ganter
Delivered between Wed, 11.6. and Fri, 13.6.
8 items in stock at third-party supplier
Supplied by

Product details

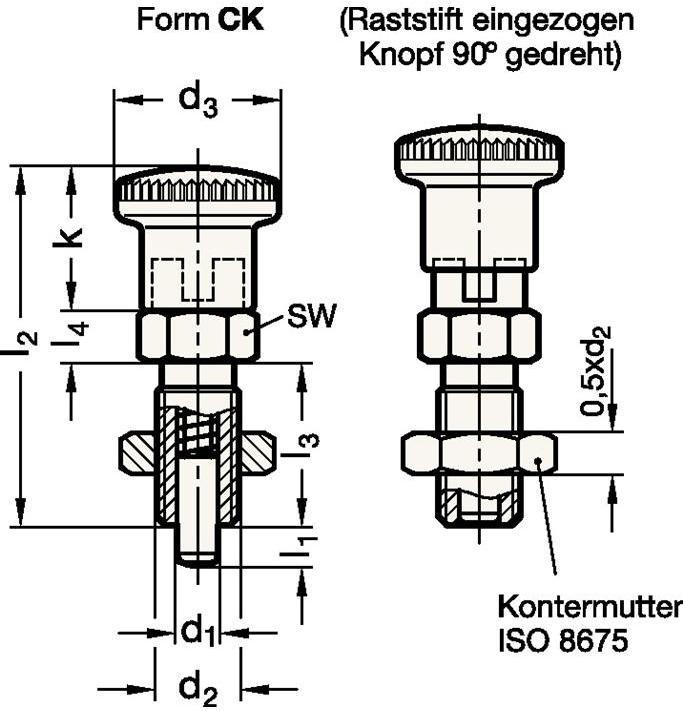

Locking Pin GN 817 d1 8mm d2 M16 x 1.5mm l1 12mm Steel, without locking mechanism, with counter nut: Locking pins are used when the locking pin should not protrude temporarily. To achieve this, the knob is turned 90° after the pin is retracted. A locking notch holds the knob in this position. Knob made of thermoplastic (polyamide PA), black, matte, non-removable. Additional technical specifications: d4: M 6mm, k: 24mm, l4: 8mm, l3: 26mm, l5: 8.5mm, l2: 58mm, l1: 12mm, d1: 8mm, d5: 10mm, d2: M 16 x 1.5mm, d3: 28mm, l6: 4mm.

Key specifications

Item number
22189955

General information

Manufacturer
Ganter
Category
Door handle
Manufacturer no.
817-8-12-BK
Release date
14.9.2022

Colour

Colour
Black
Exact colour description
Black

Material

Material group
Plastic
Material
Plastic
Surface finish
Matt

Set own shadows

Type of set
Door knob
Square size
16 mm

Handle Properties

Length
70 mm
Diameter
2000 mm
Throat of handle approx.
8 mm

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
10 x
Scope of delivery
Indexing plunger GN 817 d1 8 mm d2 M16 x 1.5 mm l1 12 mm steel, without detent lock, with lock nut

Product dimensions

Weight
0.08 kg
