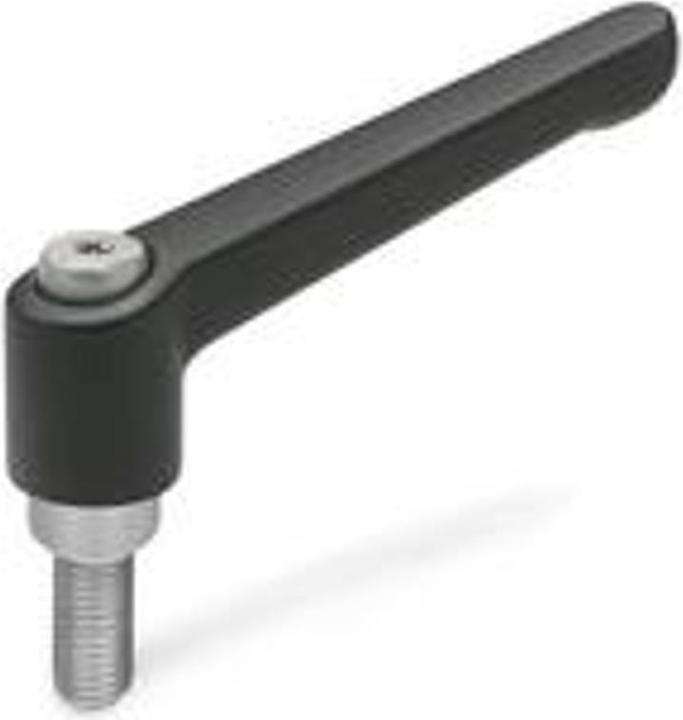

Ganter Adjustable clamping lever GN 300.1 d1 M 8 mm l1 63 mm l2 50 mm external thread

63 mm
Ratings
BrandMore from Ganter
Delivered between Thu, 26.6. and Sat, 28.6.
More than 10 items in stock at supplier

Product details

Adjustable clamping levers GN 300.1 are preferably used when the clamping range is limited or a specific clamping position is desired. The threaded insert is detachably connected to the handle via a notch gearing. By lifting (pulling) the handle, the notch gearing is released, allowing the clamping lever to be pivoted into the most favorable clamping position. Upon release, the handle automatically locks back into place. The handle body is made of zinc die-cast, while the threaded socket and retaining screw are made of stainless steel, 1.4305.

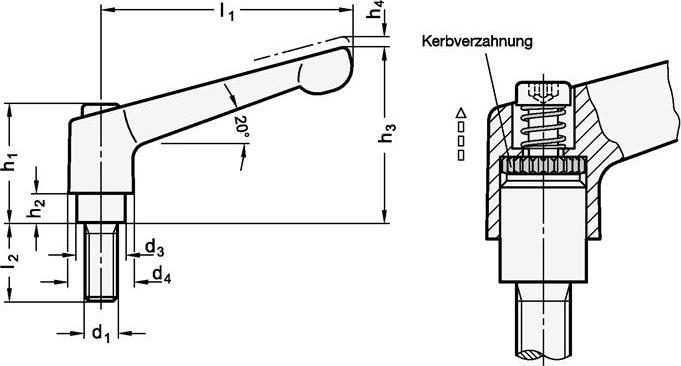

Additional technical specifications:

  • d4: 17.5 mm
  • h2: 6.5 mm
  • h4: 4 mm
  • l2: 50 mm
  • l1: 63 mm
  • h1: 31 mm
  • d1: M 8 mm
  • d3: 13.5 mm
  • h3: 45 mm

Further dimensions and color variants available upon request.

Key specifications

Diameter
63 mm
Length
110 mm
Items per sales unit
1 x
Item number
22414317

General information

Manufacturer
Ganter
Category
Vices + Clamps
Manufacturer no.
300.1-63-M8-50-SW
Release date
16.9.2022

Material

Material group
Metal
Material
Zinc die-cast

C-Clamp Features

Type of clamping device
Edge tensioners
Diameter
63 mm

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 x

Product dimensions

Length
110 mm
Width
50 mm
Height
20 mm
Weight
95000 g

30-day right of return
24 Months Warranty (Bring-in)
