Fränkische Rohrwerke Plastic clamp

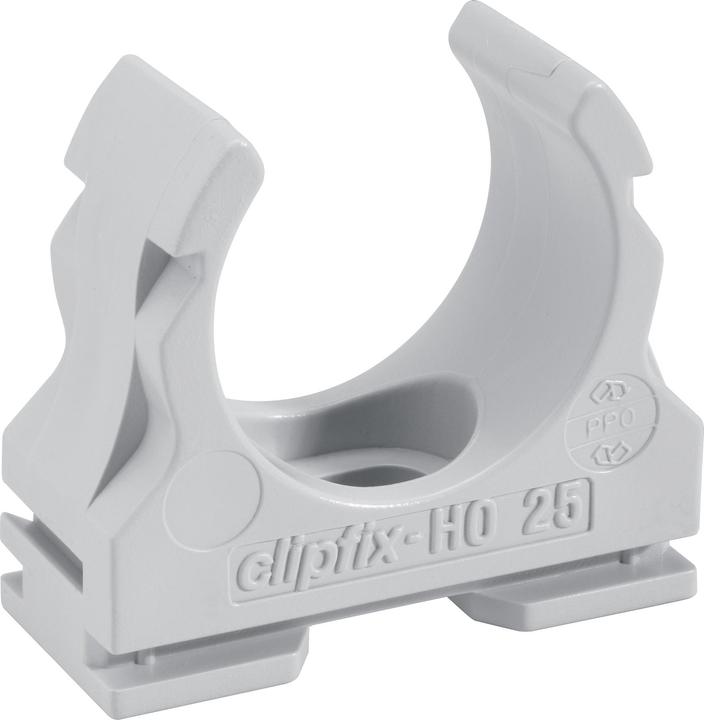

Fränkische Plastic Clamp Clipfix-H0 25

Manufacturer: Fränkische
Description: Plastic clamp
Suitable for pipe diameter: 25 mm
Closed: no
Suitable for protective hoses: yes
Material: plastic
Material quality: other
Surface protection: other
Stackable: yes
Max. number of pipes: 1
Mounting type: screw hole
With insert: no
With wall seal: no
Color: gray
Operating temperature: -45 to 120 °C
Halogen-free: yes
UV resistant: no

The clipfix-H0 is a plastic clamp made from special plastic in gray (RAL 7035), flame-retardant and halogen-free. This plastic clamp is used for the plastic rod pipes FPKu-EM-F-LS0H Low Smoke and FPKu-EM-F-H0, as well as for all corrugated pipes. The advantage lies in the extremely low smoke development, which makes escape routes easier to identify. Due to its halogen-free nature, no dangerous toxic and corrosive gases are produced. For nominal widths of 40, 50, and 63, securing brackets are included. The clamps can be mounted and stacked on a C-profile rail (10 mm). When mounting under extreme conditions such as vibration, high temperatures, overhead, heavy weights, etc., the specified clamp distances must be significantly reduced or replaced with metal clamp brackets. 100% halogen-free according to DIN VDE V 0604-2-100.
