Name: Bolt anchor FBN II 12/140 GS
Brand: Fischer
SKU: 14632990
Price: 20.5 CHF
Availability: InStock
Rating: 4.3 (15 reviews)

productDetailPageQuery

Fischer

The Fischer FBN II bolt anchor with a large washer is a steel anchor designed for economical fixings in uncracked concrete. Thanks to its long thread and two anchoring depths, the Fischer FBN II bolt anchor is particularly versatile. In addition to pre-insertion and through-insertion mounting, the bolt anchor is also suitable for spacing installations. With the pre-mounted large washer, the galvanized steel anchor is recommended for securing support beams and sleepers as well as other wooden structures.

Advantages: The larger washer on the FBN II GS provides a large bearing surface, allowing for the attachment of wooden constructions. The pre-mounted washer facilitates quick assembly progress. The standard anchoring depth achieves maximum load capacities, resulting in fewer fixing points and smaller anchor plates being required. Additionally, the anchor is very well suited for large component thicknesses. The long thread allows for compensation of component tolerances and spacing installations, thus increasing flexibility. A few hammer blows and minimal tightening slip ensure noticeably easy assembly. The impact pin protects the thread from damage, enabling time-saving assembly and disassembly of the component.

Applications: Anchor plates with elongated holes, facade substructures with elongated holes, wooden constructions, tension anchors, beam anchorages.

Building materials: Approved for: Concrete C20/25 to C50/60, uncracked. Also suitable for: Concrete C12/15, natural stone with a dense structure.

Functionality: The FBN II GS is suitable for pre-insertion and through-insertion mounting, and conditionally for spacing installations. Before installation, position the hex nut optimally (the impact pin protrudes about 3 mm from the hex nut). When applying torque, the cone bolt is pulled into the expansion clip and tensions it against the borehole wall.

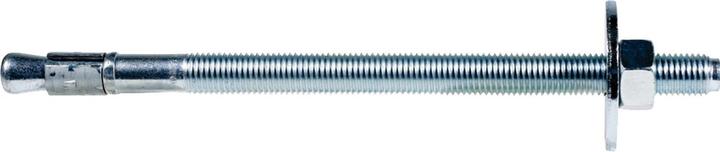

Actual product image Fischer Bolt anchor FBN II 12/140 GS (1 pcs.)

Key specifications

anchor type

borehole diameter

Dowel length

Thread diameter

Items per sales unit

The sales unit is the grouping of article units into a saleable unit, which can be the smallest unit or a grouping for sale to the customer.

Documents

Technical data sheet.pdf

Bolt anchor FBN II 12/140 GS

Wall plugs

30-day right of return – unopened

General information

Colour

Material

Dowel Properties

Origin

Voluntary climate contribution

Scope of delivery

Package dimensions

The sleeve anchor is specifically designed for flexible and cost-effective application in concrete substrates.

Use in Concrete

The sturdy metal construction ensures reliable fastening of heavy loads.

High Load-Bearing Capacity

Installation requires a drill hole with a diameter of 12 mm for an anchor length of 236 mm.
