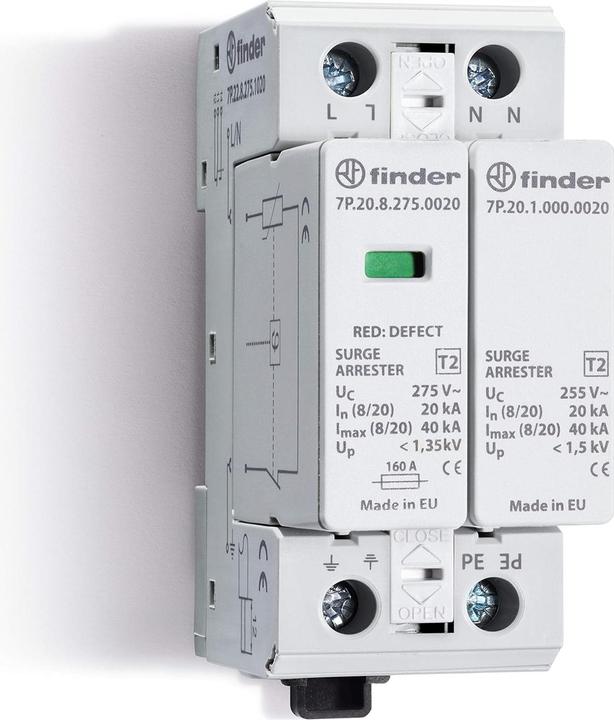

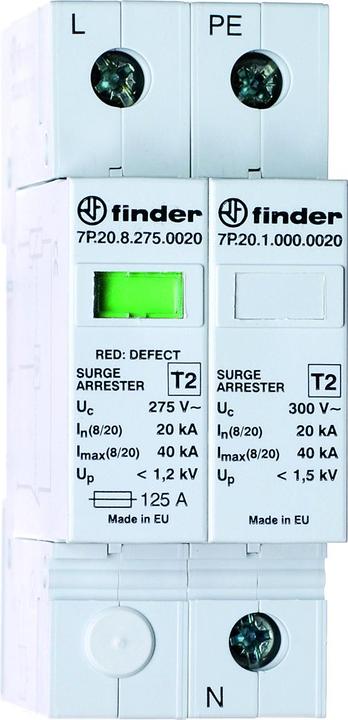

Finder SPD type 2, 1-phase, varistor+spark plug
Delivered between Tue, 21.4. and Thu, 23.4.
Only 3 pieces in stock at supplier
Only 3 pieces in stock at supplier
free shipping
Product details
Surge protective devices (SPD)
Mounting type: TH35 rail
With remote signaling contact: no
Number of conductors (excluding ground): 2
Size: 2 TE
Maximum continuous voltage AC: 275 V
Nominal discharge current (8/20): 20 kA
Nominal voltage AC: 230 V
Test class Type 2: yes
Protection level L-N: 1.35 kV
Device signaling: optical
Protection class (IP): IP20
Protection level N-PE: 1.5 kV
Integrated pre-fuse: no
Network type DC: no
Network type IT: no
Network type TN: no
Network type TN-C: no
Network type TN-S: yes
Network type TT: yes
Other network types: no
Network type TN-C-S: no
Max. discharge current (8/20): 40 kA
Short-circuit strength (Isccr): 50 kA.
Surge protection type | Combination arrester |
Number of conductors | 2x |
Mounting type | Top-hat rail |
Test class | Type 2 |
Item number | 34732663 |
Manufacturer | Finder |
Category | Surge protection |
Manufacturer no. | 7P.22.8.275.0020 |
Release date | 17.5.2023 |
Colour | Grey |
Exact colour description | Grey |
Surge protection type | Combination arrester |
Number of conductors | 2x |
Lightning impulse current | 40 kA |
Rated leakage surge current | 20 kA |
Nominal voltage | 275 V |
Mounting type | Top-hat rail |
Test class | Type 2 |
Protection type (IP code) | IP20 |
Country of origin | Czech Republic, Italy |
CO₂ emissions | 16.89 kg |
Climate contribution | CHF 0.40 |

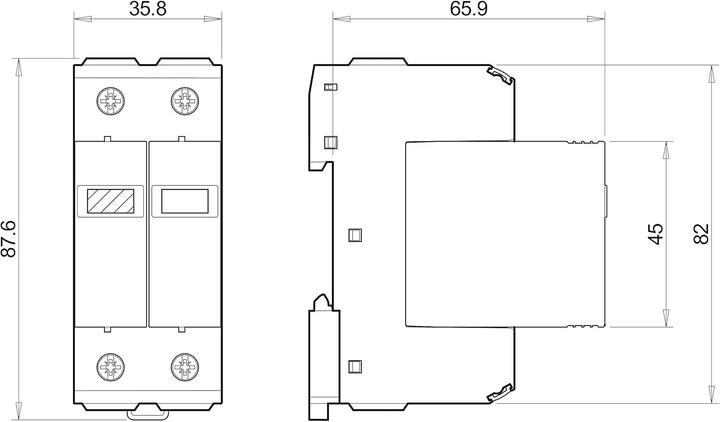

Width | 0.04 m |
