Festool Hole drilling set LR 32

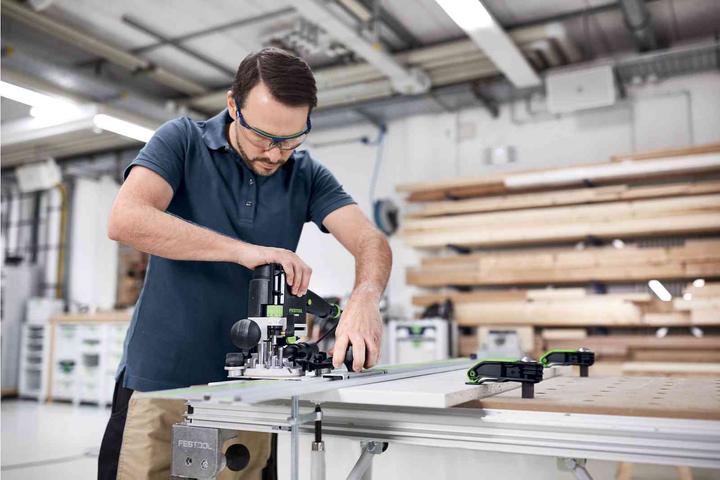

Drilling patterns are always drilled with a spacing of 32 mm and a hole diameter of 5 mm or 3 mm. The drilling pattern system is a set designed for quickly and easily creating drilling patterns for shelf supports, back wall brackets, and fittings using the OF 1010 or OF 1400 router.

Series of holes.

Strengths and Benefits:

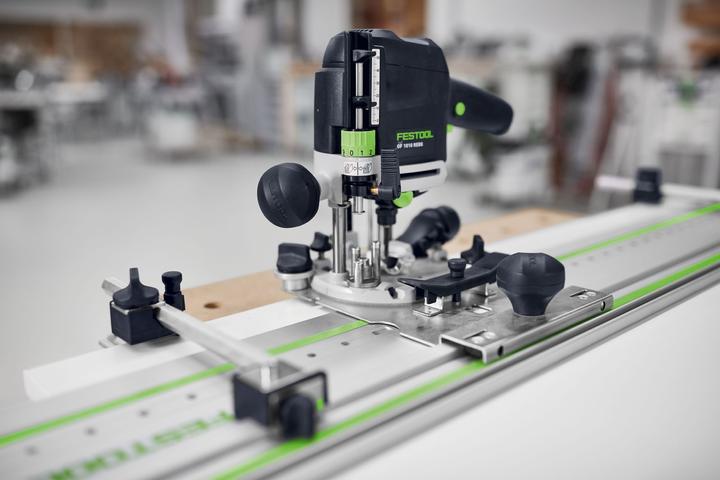

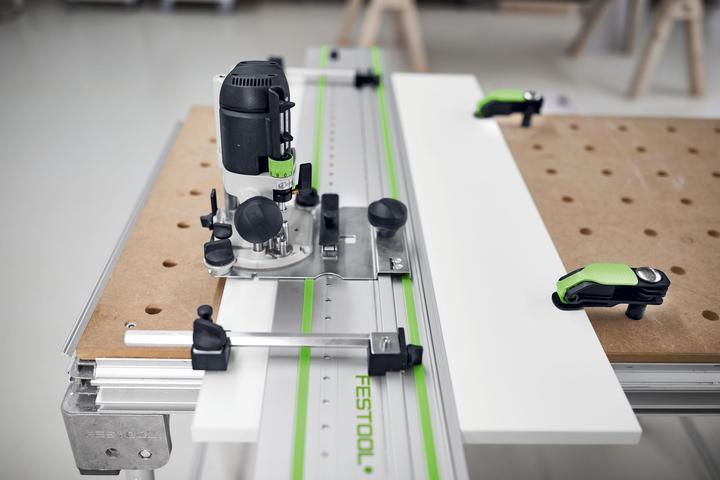

• With the LR 32 system – consisting of the guide rail FS 1400/2-LR 32 or FS 2424/2-LR 32 and the drilling pattern set – precise rows of holes can be drilled at a grid spacing of 32 mm using the Festool router.

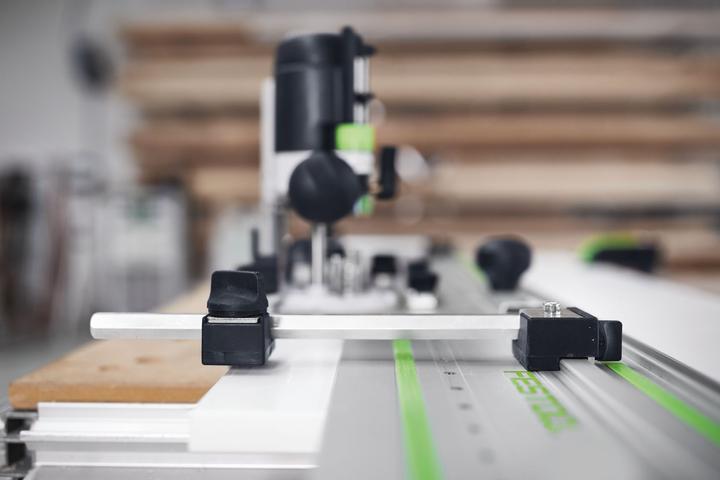

• Quickly and aligned in parallel, the LR 32 guide rail features two side stops that can be positioned on the workpiece and guide rail using stop sliders.
• The guide rail is precisely positioned with edge distances of 9.5, 16, or 32 mm using the longitudinal stop in the longitudinal direction.
• Centering pin for perfect centering of the router on the guide plate.
• Spring-loaded positioning lever for effective operation when drilling the row of holes.

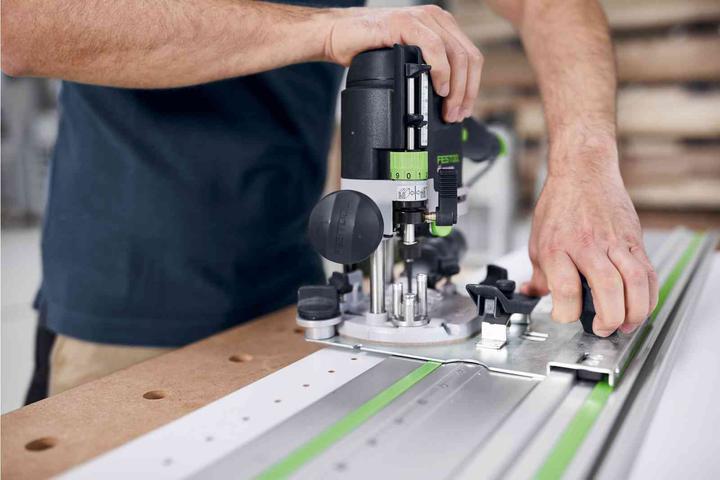

• Perfectly guided through fine adjustment of the guide play and an additional handle on the guide plate.

Application Focus:

• Creating rows of holes at 32 mm spacing.
• Drilling fittings such as cup hinges.

Compatible with:

• OF 900, OF 1000, OF 1010, OF 1400 in the FS-LR32 drilling pattern system.
• Use with drilling pattern guide rails.

Delivery Includes:

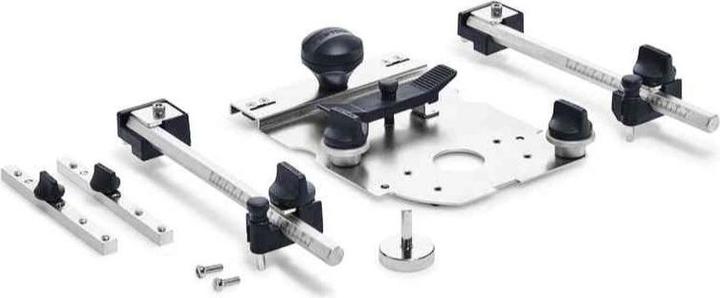

Guide plate, centering pin, 2 x side stops, 2 x length stops, in a box.

For commercial use, please observe building regulations!.
