Festo Y-Connector 6mm

CHF8.14/1pcs.
Ratings
Delivered between Tue, 10.6. and Fri, 20.6.
7 items in stock at third-party supplier
Supplied by

Product details

Manufacturer Series: NPQH
Pipe Connection A: Push-in installation 6 mm
Pipe Connection B: Push-in installation 6 mm
Pipe Connection C: Push-in installation 6 mm
Housing Material: Brass
Thread Material: Brass
Maximum Operating Pressure: 20 bar
Chemical Resistant: Yes
Pipe Connection B - Type: Push
Maximum Operating Temperature: +150 °C
Pipe Connection A - Type: Push
Minimum Operating Temperature: 0 °C
Pipe Connection A - Pipe Size: 6 mm
Pipe Connection C - Pipe Size: 6 mm
Connection Type: Pipe-to-Pipe

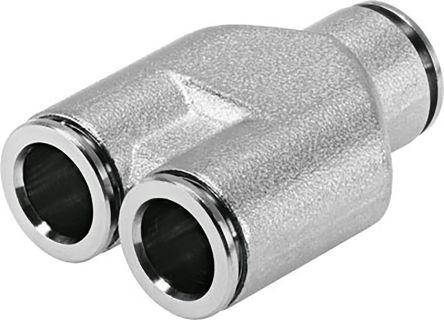

NPQH Push-in Y-Connector. The Y-connectors of the NPQH series from Festo are designed for easy pipe connection and provide a reliable seal. They feature a compact design and are ideal for pneumatic applications with a temperature range of up to 150 °C and a pressure range of up to 20 bar. The NPQH series is a full metal push-in fitting made of chemically nickel-plated brass, which is safe for use in the food industry. It offers high corrosion resistance (CRC3) and chemical resistance. Features and benefits: Quick and easy pipe insertion, solid metal design, high temperature resistance, resistant to cleaning agents, FDA compliant, high nominal pressure.

Key specifications

Metal type
Brass
Items per sales unit
10 x
Item number
10310564

General information

Manufacturer
Festo
Category
Screw accessories
Manufacturer no.
NPQH-Y-Q6-E-P10
Release date
15.1.2019
External links
Manufacturer's site (de)

Material

Material group
Metal
Metal type
Brass
Material
Brass

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
10 x

Product dimensions

Internal diameter
6 mm
Length
369 mm
Outside diameter
6 mm
