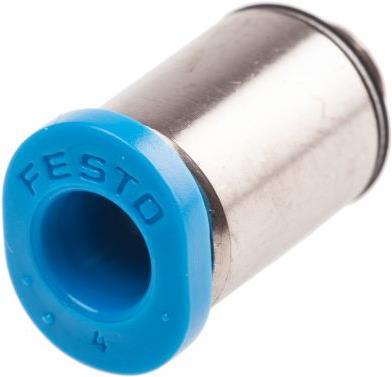

Festo Push-in Fitting, Male M5, 4mm, Hex
Pipe fittingFree shipping starting at 50.–
Threaded connection: M5 plug
Pipe connection: Plug-in assembly 4 mm
Threaded connection - thread size: 5 mm
Body material: Brass
Thread material: Brass
Manufacturer series: QSM
Thread connection - standard thread: Metric
Pipe connection - type: Push-in
Operating pressure max.: 14 bar
Operating temperature min.: -10°C
Operating temperature max.: +80°C
Surface: Nickel plated
Pipe connection B - type: Push-in
QS push-in fittings feature a male thread with a hexagon socket. This high-quality series includes straight pipe adapters for push-in installation. The series offers fittings with various metric, G-parallel, or R-conical threads and diameters for your connection. Features and benefits include a convenient and easy-to-install push-in fitting system made of very resistant materials, a maximum operating pressure of 14 bar, and an operating temperature range from -10 to +80 °C. Available with different threads and diameter sizes to suit your connection.
Material | Brass |
Pipe connection technology type | Pipe fitting |
Item number | 10310044 |
Manufacturer | Festo |
Category | Pipe connection technology |
Manufacturer no. | QSM-M5-4-I |
Release date | 15.1.2019 |
Material group | Metal |
Material | Brass |
Metal type | Brass |
Pipe connection technology type | Pipe fitting |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 10 x |
Length | 16.20 mm |
Width | 9 mm |
Diameter | 4 mm |
Height | 9 mm |
Length | 7.70 cm |
Width | 5.70 cm |
Height | 1.10 cm |
Weight | 5 g |
