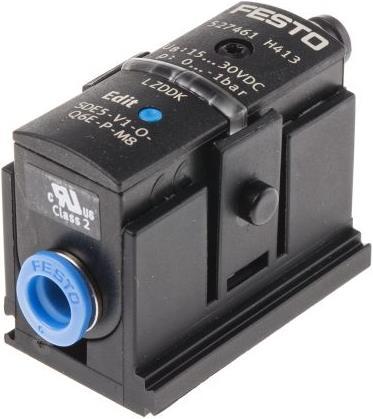

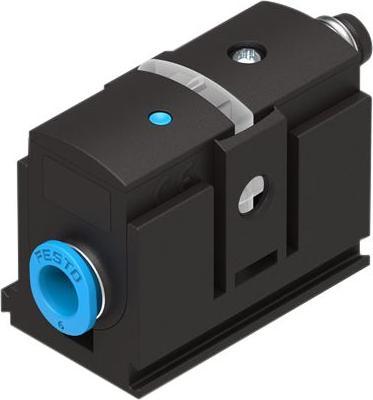

Festo Pressure sensor, M8 plug, 0 to -1 bar

Operating pressure min. = -1 bar
Operating pressure max. = 0 bar
Pressure type = Relative pressure
Suitable media = Air
Connection = Plug-in mounting, 6 mm
Type = Pressure sensor
Rated voltage = 15 to 30 V DC
Manufacturer series = SDE5
Contact functions = Normally open
Operating temperature min. = 0°C
Operating temperature max. = +50°C
IP protection class = IP40
Voltage drop = 1.8 V

Festo pressure sensors of the SDE5 series are designed for simple and fast pressure monitoring. The intelligent fitting provides instant information on current pressure and is effective in object detection via back pressure, as well as pressure, regulator, and vacuum detection.

Features and benefits include selectable output functions, a teach-in program function for programming, quick switch point adjustment at the touch of a button, an analog output of 0 to 10 V, and an LED switching status display.

Application information: The SDE5 pressure sensors can be used when simple detection of the actual pressure is required, such as in compressed air monitoring, controller monitoring, suction confirmation in vacuum technology, and object detection via back pressure.
