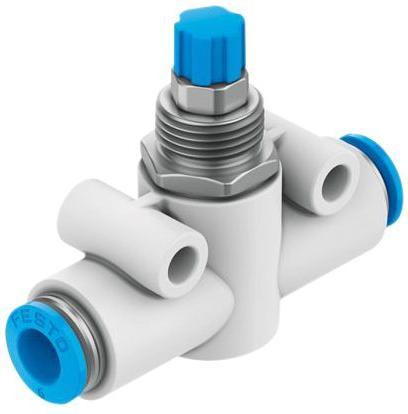

Festo Inline Flow Controller 6mm Push-in

Manufacturer Series: GR
Type: One-way flow valve
Inlet port type: Tube
Pipe inlet port: 6mm
Outlet connection type: Tube
Pipe outlet channel: 6mm
Outlet pressure min.: 0.2 bar (operating)
Outlet pressure max.: 10 bar (operating)
Housing material: Polyamide

The GRLA series outlet flow regulator features an integral QS push-in fitting. The QS push-in fittings and captive seals, along with a rugged metal body, provide easy and reliable installation that can be freely rotated 360°.

One-way flow valves are used to control flow rates for the forward or return stroke of cylinders, which in turn controls the piston speed. Depending on the choice of valve, there are precise settings for slow, medium, or fast piston movements.

Features and benefits include:

• One-way flow valves for exhaust air
• Adjustable by hand or with a screwdriver (slot)
• Robust and reliable thanks to metal design
• Simple and fast assembly with QS fittings.
