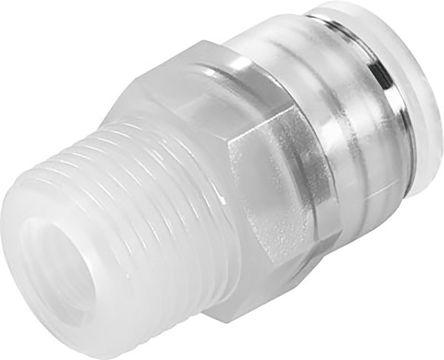

Festo Fitting Male R1/4 6mm
6 pieces in stock at supplier
Product details
Type: Straight
Pipe connection B: Push-in mounting 6 mm
Housing material: Polypropylene
Chemical resistant: Yes
Pipe connection B - Pipe size: 6 mm
Maximum operating temperature: +60 °C
Minimum operating temperature: -20 °C
Pipe connection B - Type: Push-in
Thread connection A: R 1/4 plug
NPQP mounting connectors for push-in installation. The NPQP series mounting connectors from Festo are designed for push-in installation and provide an easy pipe connection along with a reliable seal. The polypropylene construction is suitable for applications with extreme media influences. It is designed for pneumatic applications with a temperature range of up to 60 °C and a pressure range of up to 10 bar. The connection offers high corrosion resistance (CRC3) and chemical resistance. The NPQP series is an alternative to stainless steel fittings for the food and beverage industry, biotechnology/pharmaceutical industry, medical technology, clean rooms, and process automation.
Features and benefits:
- Quick and easy insertion of the pipe
- Polypropylene housing with stainless steel hose holder
- Corrosion resistant
- Chemical resistant
- FDA compliant
- Transparent for easy monitoring.
Material | Polypropylene |
Item number | 10310576 |
Manufacturer | Festo |
Category | Pipe connection technology |
Manufacturer No. | NPQP-D-R14-Q6-FD-P10 |
Release date | 15.1.2019 |
Material group | Plastic |
Material | Polypropylene |
Connection thread | 1/4" |
CO₂ emissions | 0.7 kg |
Climate contribution | CHF 0.11 |
Items per sales unit | 10x |
Length | 200 mm |
Width | 100 mm |
Diameter | 6 mm |
Height | 50 mm |
