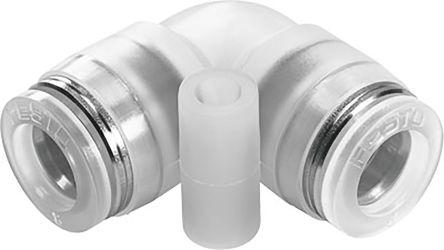

Festo Angled 8mm to 8mm

Pipe connection A = Push-fit 8 mm
Pipe connection B = Push-fit 8 mm
Housing material = Polypropylene
Max. operating pressure = 10 bar
Pipe connection A - Type = Press
Suitable for food = yes
Pipe connection B - Type = Press
Max. operating temperature = +60 °C
Min. operating temperature = -20 °C
Pipe connection A - Pipe size = 8 mm
Connection type = Pipe-to-pipe

NPQP pipe-to-pipe push fittings with elbow. The NPQP series of push elbow connectors from Festo is designed for easy pipe connection and provides a reliable seal. This polypropylene fitting is suitable for use in extreme media applications. It is ideal for pneumatic applications with a temperature range of up to 60 °C and a pressure range of up to 10 bar. The fitting offers high corrosion resistance and chemical resistance. The NPQP series serves as an alternative to stainless steel fittings for the food and beverage industry, biotechnology/pharmaceutical industry, medical technology, clean rooms, and process automation.

Features and benefits include quick and easy pipe assembly, a polypropylene housing with a stainless steel pipe holder, corrosion resistance, chemical resistance, FDA compliance, and transparency for easy monitoring.
