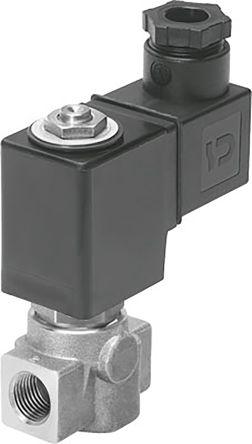

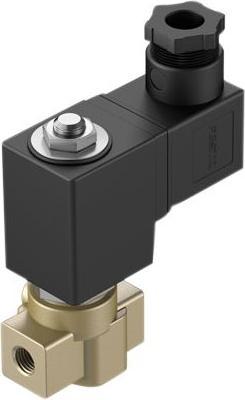

Festo 2/2 Way Solenoid Valve, NC, G1/4", 4mm

Supply voltage = 24 V dc
Number of connections = 2
Operation = Direct
Connection = G1/4, internal thread
Connection size = 1/4inch
Valve position standard = normally closed
Type = 2/2
Valve opening = 4mm
Body material = brass
Operating pressure max = 8 bar
Operating temperature range = -10 → +35 °C
Minimum operating temperature = -10°C
Maximum operating temperature = +35°C
Series = VZWD

VZWD Series Solenoid Valves. VZWD series direct operated solenoid valves are ideal for use in high pressure, low flow applications. The valve can operate without differential pressure at up to 15 bar even with closed media circuits. Features and benefits. For water, air and neutral media Operation is not affected by light dirt Available with G1/4 or G1/8 connection thread Mechanical spring return Integrated N/C function Max. Operating pressure of 15 bar Inline mounting Protection class IP65. Field of application. Pneumatics, high pressure cleaning, process automation, vacuum technology, venting of gas and tank systems.
