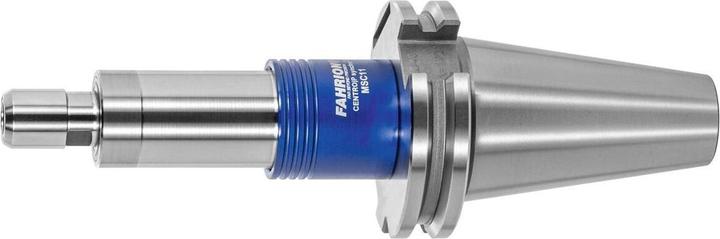

Fahrion Gewindeschneidfutter, ER-Synchro 11

Design: Extremely low axial forces for minimal flank pressure and perfect surface quality. Torsion dampers and compensation mechanisms in the circumferential direction. Depth of up to 150 mm achievable with a diameter of 10 mm interference contour (for thread sizes M0.5-M3). Suitable for internal coolant supply up to 80 bar. Compatible with taps and thread formers. Suitable for both right-hand and left-hand threads. Applicable for blind and through holes. Minimal length compensation in compression and tension direction. Significantly reduces flank pressure in both old and new CNC machining centers. Note: Products No. 338131 – 338135 are only to be used with CENTRO/P collets (No. 309365– 309372). The weaker the axial force, the better the quality, less wear, longer tool life, and safer process. CP roller wrench No. 309754 or CP torque roller wrench No. 309756 must be purchased separately. Delivery includes: open-end wrench. Advantage: Safe processes due to smooth operation even under torque load. Longer tool life for taps and thread formers. Significantly smaller outer diameter than previously available. Considerably more internal cooling directly at the tool compared to conventional synchronous chucks (for ER8). Twice the roundness accuracy for the lowest flank pressure. Damped direction reversal for fewer tool breakages. Application: On machining centers with synchronous spindle. To compensate for the pitch differences between taps and synchronous spindle. To compensate for pitch tolerances of the taps.
