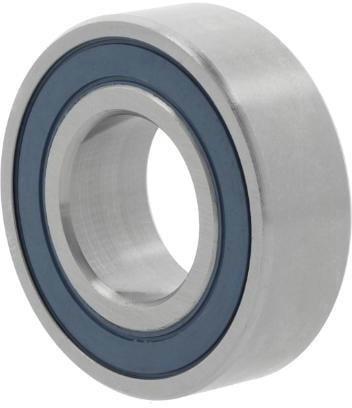

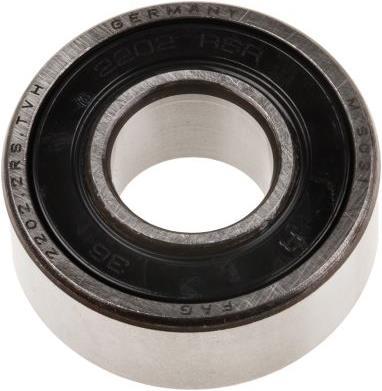

FAG Self-Align Bearing 15mm 35mm 14mm Sealed
More than 10 pieces in stock at supplier
Product details
Inner diameter: 15mm
Outer diameter: 35mm
Ball bearing: Self-aligning
Thrust bearing width: 14mm
End type: Sealed
Number of rows: 2
Static load: 1730N
Material: Steel
Thrust bearing type: Smooth
Dynamic load: 7700N
Bore type: Parallel
Self-locating ball bearings. Self-aligning ball bearings of the FAG brand of the Schaeffler Group are double-row, self-retaining units. They comprise solid outer rings with a hollow spherical raceway, inner rings with a cylindrical or tapered bore, and ball and cage assemblies. The bearings are available in open and sealed versions. Features and benefits include lower operating costs, lower maintenance thanks to improved lubrication, lower heat generation, less noise generation, and the ability to be subjected to axial and radial forces. Attachments include C3 - internal radial clearance greater than normal, TVH - solid cage made of glass fiber reinforced polyamide 66, and 2RS - contact seals on both sides.
Ball bearing type | Self-aligning ball bearing |
Outside diameter | 35 mm |
Internal diameter | 15 mm |
Width | 14 mm |
Item number | 10311357 |
Manufacturer | FAG |
Category | Ball bearings |
Manufacturer No. | 2202-2RS-TVH |
Release date | 15.1.2019 |
Colour | Grey |
Exact colour description | Grey |
Material group | Metal |
Material | Standard rolling bearing steel |
Ball bearing type | Self-aligning ball bearing |
Load rating dyn. | 7.70 kN |
Load rating stat. | 1.73 kN |
Country of origin | Germany |
CO₂ emissions | 0.23 kg |
Climate contribution | CHF 0.11 |
Scope of delivery | 1 piece Self-aligning ball bearing 2202-2RS-TVH Inner Ø 15 mm Outer Ø 35 mm Width14 mm FAG |
Outside diameter | 35 mm |
Internal diameter | 15 mm |
Width | 14 mm |
Weight | 61 g |
