Etherma 303-BRUS-95-1810 Freiflächenheiz

Etherma Outdoor Heating 303-BRUS-95-1810

Manufacturer: Etherma
Description: Outdoor heating 17.21 m² 5164 W 400 V
Type: 303-BRUS-95-1810
Design: other
With carrier mat: no
Heating conductor fixation: glued
Self-adhesive: no
Connection voltage: 400 V
Connection power: 5164 W
Power: 300 W/m²
Heating conductor load: 30 W/m
Resistance: 31 Ohm
Number of cold leads: 1
Length of cold leads: 10000 mm
Suitable for wet rooms: yes
Suitable as outdoor heating: yes
Suitable as roof heating: no
Area: 17.21 m²
Length: 18100 mm
Width: 950 mm
Thickness: 7 mm
With controller: no
With room thermostat: no
With floor temperature sensor: no

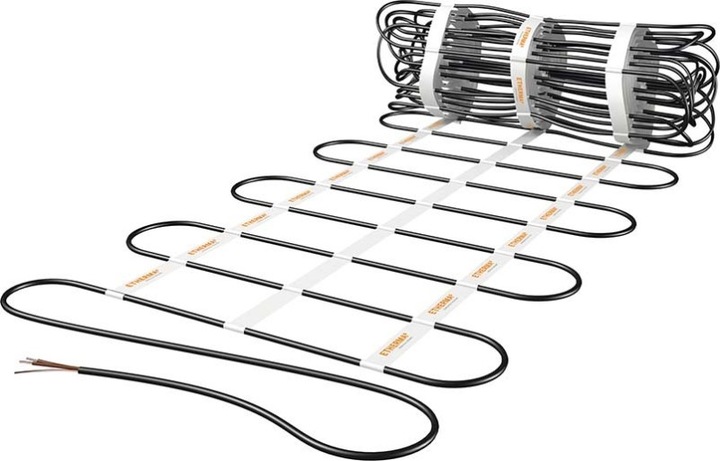

The BRS heating mat is designed to keep parking garage ramps, emergency access areas, and entrances free of snow and ice. The heating mat is ideal for installation in concrete screed, flowable concrete, monolithic concrete, site-mixed concrete, and even in 3 cm protective concrete, as well as for embedding in rolled asphalt. Due to its robust, impact-resistant design, the BRS heating mats can be used in areas with increased mechanical stress. The heating conductor is resistant to spherical acids and alkalis. The special processing and the single connection lead simplify the installation of the heating mats.

Tip: We are happy to produce your connection lead to measure.
Nominal temperature: up to 105 °C
System construction: according to EN60335, CE compliant
Protection class: IP X7
Outer diameter: 7 mm
Connection lead: 10 m, 3x1.5 (2.5) mm²
Min. bending radius: 5 d
Min. installation temperature: -5 °C
Temperature resistance of the heating conductor: 180 °C/45 min
Protection measure: RCD protection circuit 30 mA
EAN: 9120061398630.
