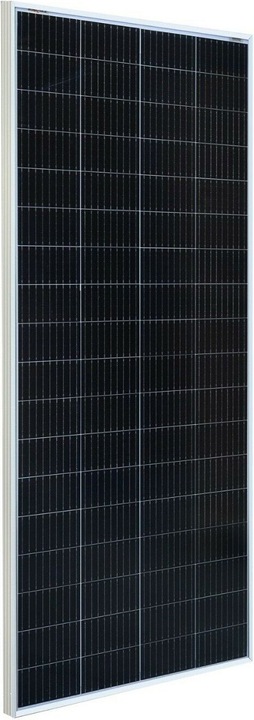

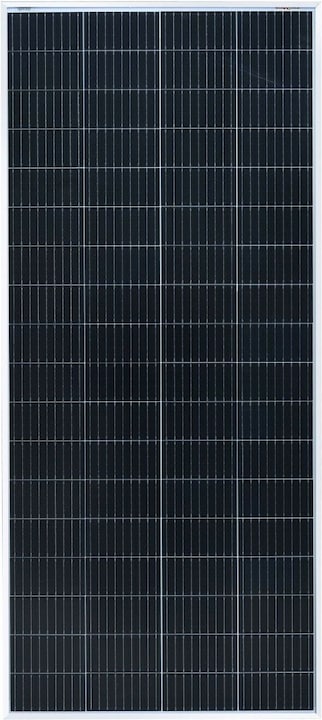

Enjoy solar Mono Classic

200 W, 13.90 kg

Performance

Structure with 158.75 mm 9-busbar monocrystalline perc cells. Cell efficiency approx. 20%. High operating voltage of 36V, perfect for 24V systems.

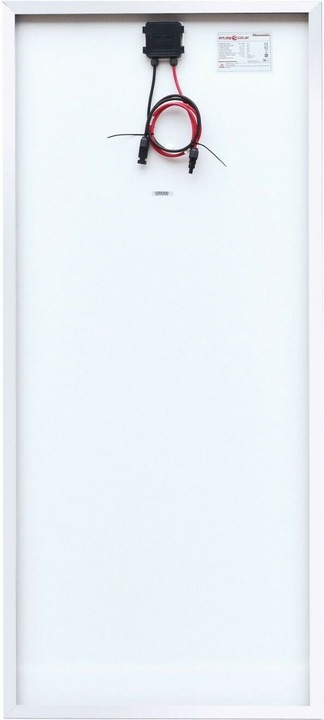

IP65 junction box with 90cm long 4mm² solar cable and solar plug. Two integrated bypass diodes - minimised. Power drop when shaded. TÜV certified according to IEC61215, IEC61730 standards. Surface made of tempered ESG solar glass with weatherproof coating. Unique frame in anodised aluminium.

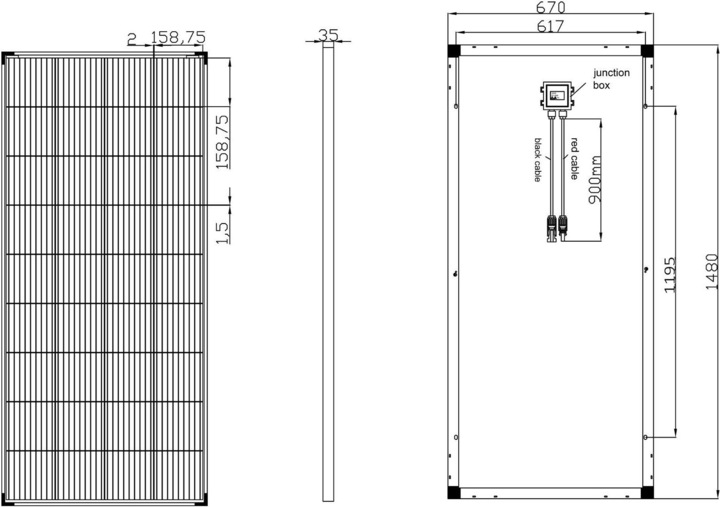

Key specifications

Length
148 cm
Width
67 cm
Cell type
Monocrystalline
Nominal power
200 W
Solar panel type
Solar panel
Documents
Item number
23539961

General information

Manufacturer
Category
Solar panels
Release date
12/20/2022
Sales rank in Category Solar panels

Colour

Frame colour
Silver

Solar Technology properties

Solar panel type
Solar panel
Plug type
MC4

Solar panel properties

Cell type
Monocrystalline
Solar panel design
Permanently installed, Rigid
Nominal power
200 W
Voltage (MPP)
36.20 V
Rated current (MPP)
5.53 A
Short circuit current
6.34 A
Open circuit voltage (UMPP)
40.50 V
Number of cells
72 x

Product dimensions

Length
148 cm
Width
67 cm
Height
3.50 cm
Weight
13.90 kg

Package dimensions

Length
150 cm
Width
70 cm
Height
6 cm
Weight
12.70 kg
