Enjoy solar Mono

150 W, 9 kg

Performance

100 W
89.90
150 W
136.–

Structure with 182 mm 10-busbar monocrystalline perc cells. Cell efficiency over 23.1%. Less spacing between solar cells and thinner busbar design.
More solid energy production with the added copper and excellent performance in low light conditions. Reduced installation area and installation costs. 2 pcs integrated bypass diode. Tempered ESG solar glass surface with weatherproof coating. Unique extra robust anodised aluminium frame. IP68 - 90 cm long solar cable; 2.5 mm² connected with MC-4 plugs. TÜV certified according to IEC61215, IEC61730 standards. Guarantee of plus tolerance (+3%).

Key specifications

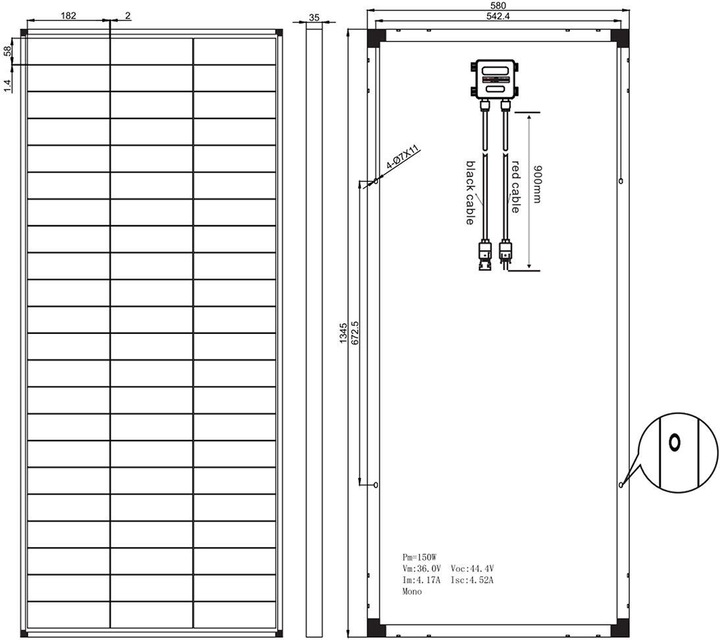

Length
134.50 cm
Width
58 cm
Cell type
Monocrystalline
Nominal power
150 W
Solar panel type
Solar panel
Documents
Item number
23539955

General information

Manufacturer
Category
Solar panels
Release date
12/20/2022
Sales rank in Category Solar panels

Colour

Frame colour
Black

Solar Technology properties

Solar panel type
Solar panel
Plug type
MC4

Solar panel properties

Cell type
Monocrystalline
Solar panel design
Permanently installed, Rigid
Nominal power
150 W
Voltage (MPP)
18 V
Rated current (MPP)
8.34 A
Short circuit current
9.05 A
Open circuit voltage (UMPP)
22.20 V
Number of cells
33 x

Product dimensions

Length
134.50 cm
Width
58 cm
Height
3.50 cm
Weight
9 kg

Package dimensions

Length
137 cm
Width
60 cm
Height
5.50 cm
Weight
10.13 kg
