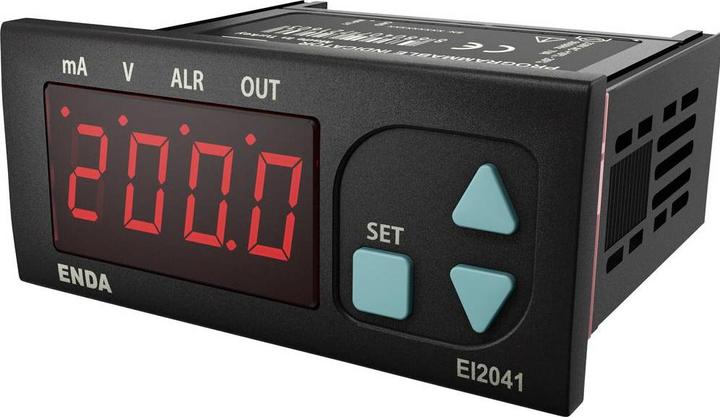

Enda EI2041-230-2R-12 Digital Panelmeter Universal LED Display 35x77mm

The Enda EI2041-230-2R-12 is a digital panel meter designed for precise monitoring of electrical parameters. With a compact LED display measuring 35x77 mm, it provides a clear and easily readable representation of measurement values. The device allows for the display of values ranging from -1999 to 4000 and offers flexible decimal point adjustment. User-friendliness is enhanced by the ability to select between various input signals such as 0-20mA, 4-20mA, 0-1V, and 0-10V. Furthermore, individual calibrations can be made to tailor the device to specific applications. Functionality is further complemented by the ability to retrieve maximum and minimum values as well as set alarm types, enabling effective monitoring and control.

• 4-digit digital display with adjustable decimal point
• Selectable input signal between 0-20mA, 4-20mA, 0-1V, 0-10V
• Calibration options for specific applications
• Adjustable alarm types and control functions
• RS485 Modbus RTU communication (optional).
