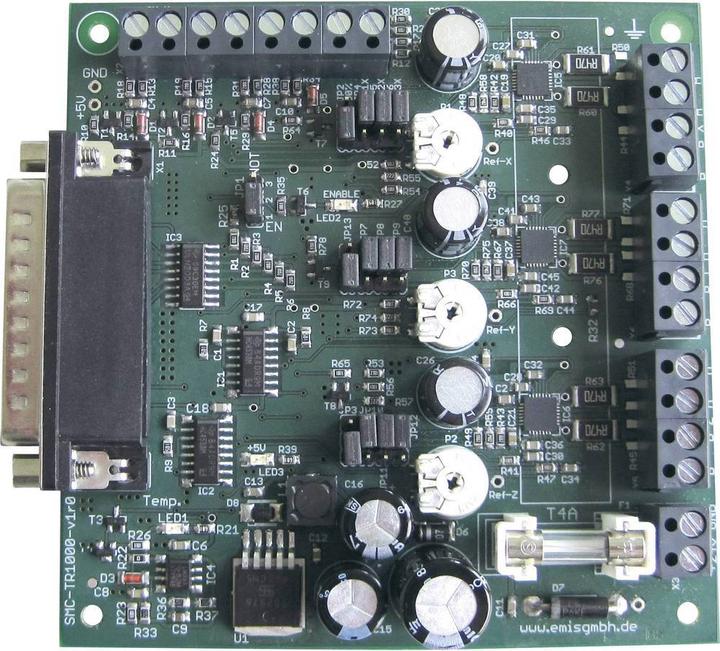

Emis 3axis stepper motor control card

The stepper motor control board SMC-TR-1000 is designed for 3-axis control of stepper motors. It can be used, for example, as a plotter control or for 3-axis positioning systems. The board is suitable for connecting bipolar 2-phase or 4-phase stepper motors. The phase currents can be continuously adjusted up to a maximum continuous current of 1 A. Only an external power supply voltage is required to operate the control board. The connection of the control board to the PC is made via the parallel interface. Control is based on the pulse-direction principle. With the included software, users can quickly implement their own ideas, such as positioning, drilling, milling, engraving, and robotic systems.
